The illustrated architectural, engineering, & mechanical drawing-book : for the use of schools, students, and artisans ; upwards of 300 illustrations (1856)
Burn, Robert Scott · London : Ward and Lock, 158 Fleet Street · leaf 86

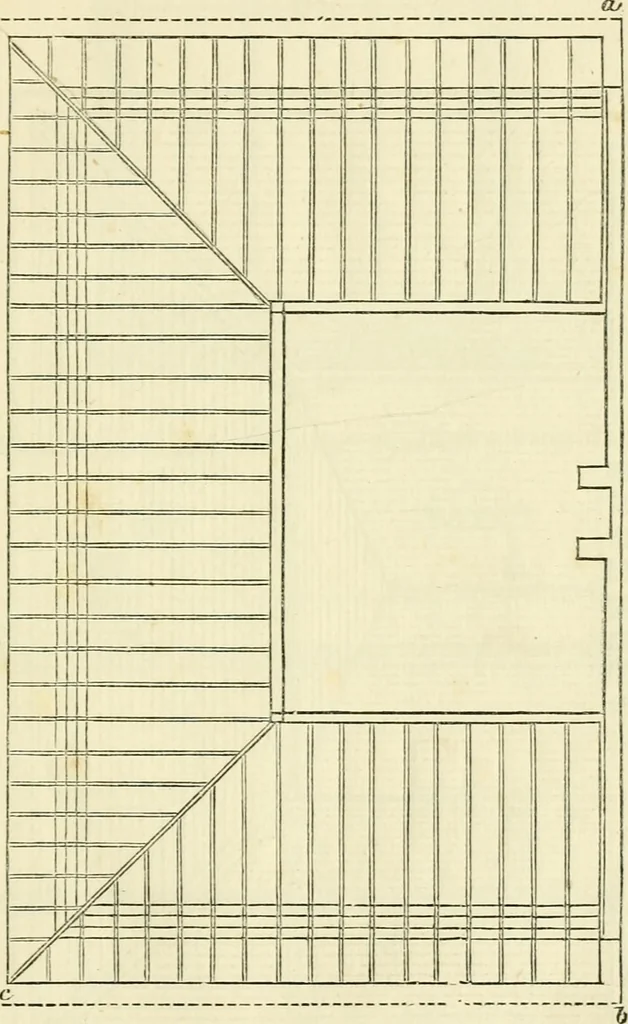

EXGIXEERIXG, AND MECHANICAL DRAWING-BOOK. 83 Example 160, fig. 162, is half plan of roof, showing timbers. TlieOther half, showing the slated surface, and position of flues, is given in … tig. 1G2. F J .Si ILLUSTRATED ARCUITECTURAL, Example 161, fig. 163. In setting out this, the pupil may copy it, bydrawing the line ah, and continuing it to c; measuring from d to c willgive the position of the end ab of tlie flue. From d to /the position ofthe point e, <j h, the distance of line…
Architectural drawing · Mechanical drawing
