The illustrated architectural, engineering, & mechanical drawing-book : for the use of schools, students, and artisans ; upwards of 300 illustrations (1856)
Burn, Robert Scott · London : Ward and Lock, 158 Fleet Street · leaf 90

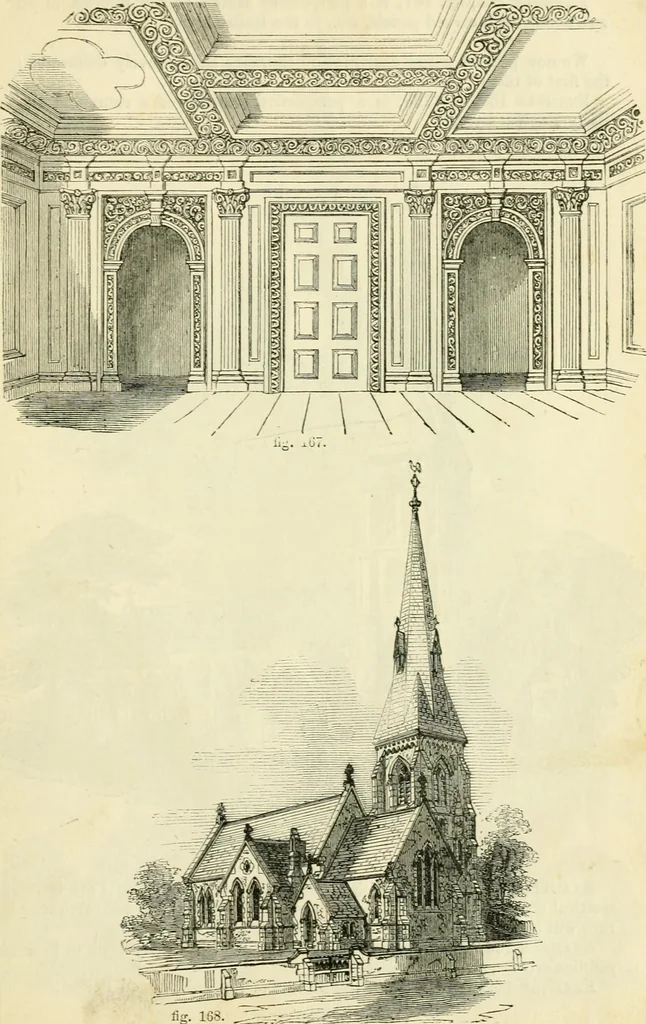

fig. 16G. EXGINEERING, AND MECHANICAL DRATVISG-BOOK. 87 … 88 ILLUSTRATED ARCHITECTUUAL, Example 165, fig. 167, is a perspective sketch of the interior of anapartment, with carved })anels, &c., in the Italiaa style. We now present a lew examples of churches perspectively delineated;the first of these, Example 1G6, fig. 168, is a per.>pective drawing…
Architectural drawing · Mechanical drawing
