The illustrated architectural, engineering, & mechanical drawing-book : for the use of schools, students, and artisans ; upwards of 300 illustrations (1856)
Burn, Robert Scott · London : Ward and Lock, 158 Fleet Street · leaf 91

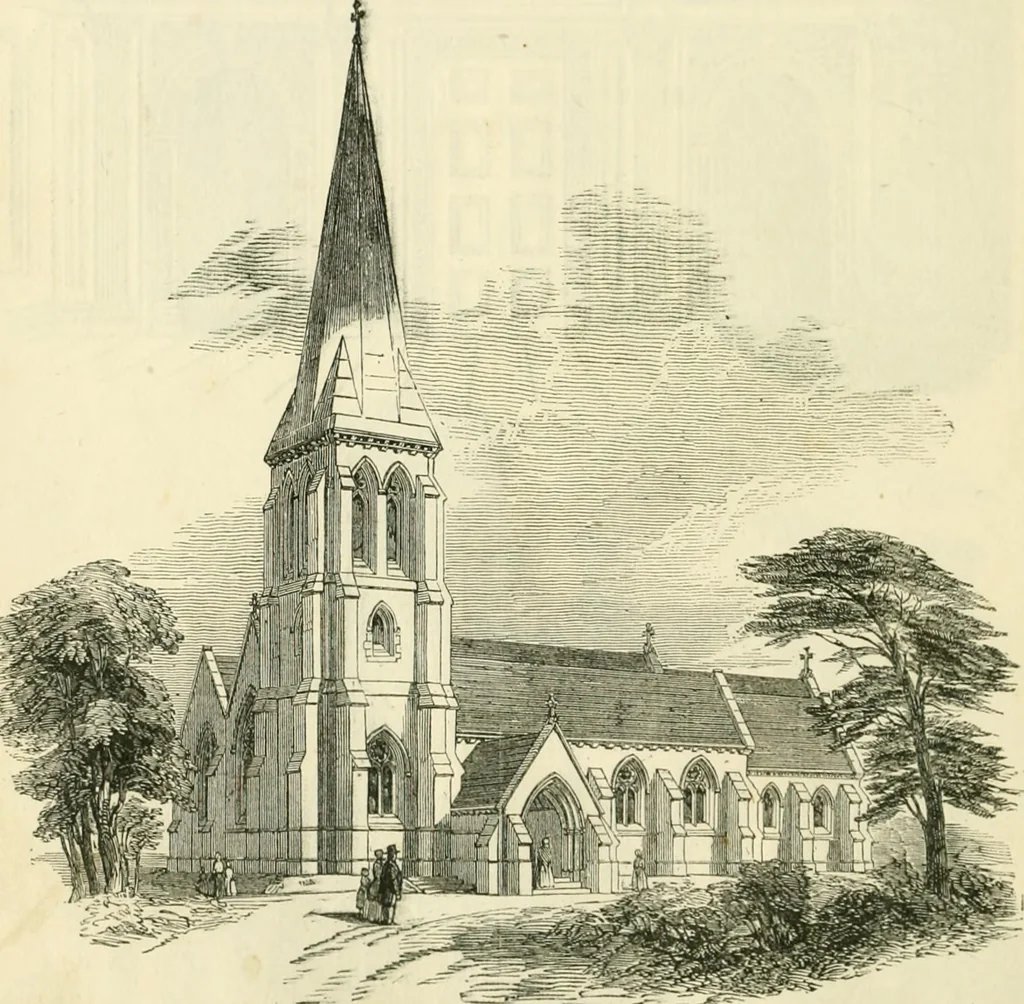

)anels, &c., in the Italiaa style. We now present a lew examples of churches perspectively delineated;the first of these, Example 1G6, fig. 168, is a per.>pective drawing of a church in theEarly-English style. … h)d. Example 167, fig. 169, whicli is in the Early-Decorated or Pure Geo-metrical style. The peculiarities of the various styles of Gothic architec-ture will be seen by an inspection of figs. 202, 203, &c. Example 168, fig. 170, is in the Transitional from Decorated to Per-pendicular. Example…
Architectural drawing · Mechanical drawing
