Illustrated catalogue of cotton machinery built by Howard & Bullough American Machine Company, Ltd., Pawtucket, R.I., U.S.A. : opening, picking, carding, drawing, roving, spinning, twisting and winding machinery : warpers and slashers : containing also floor spaces, speeds, productions, gearing diagrams, useful tables and other information (1909)

Howard & Bullough American Machine Co · [Pawtucket, R.I. : Howard & Bullough American Machine Company] · leaf 167

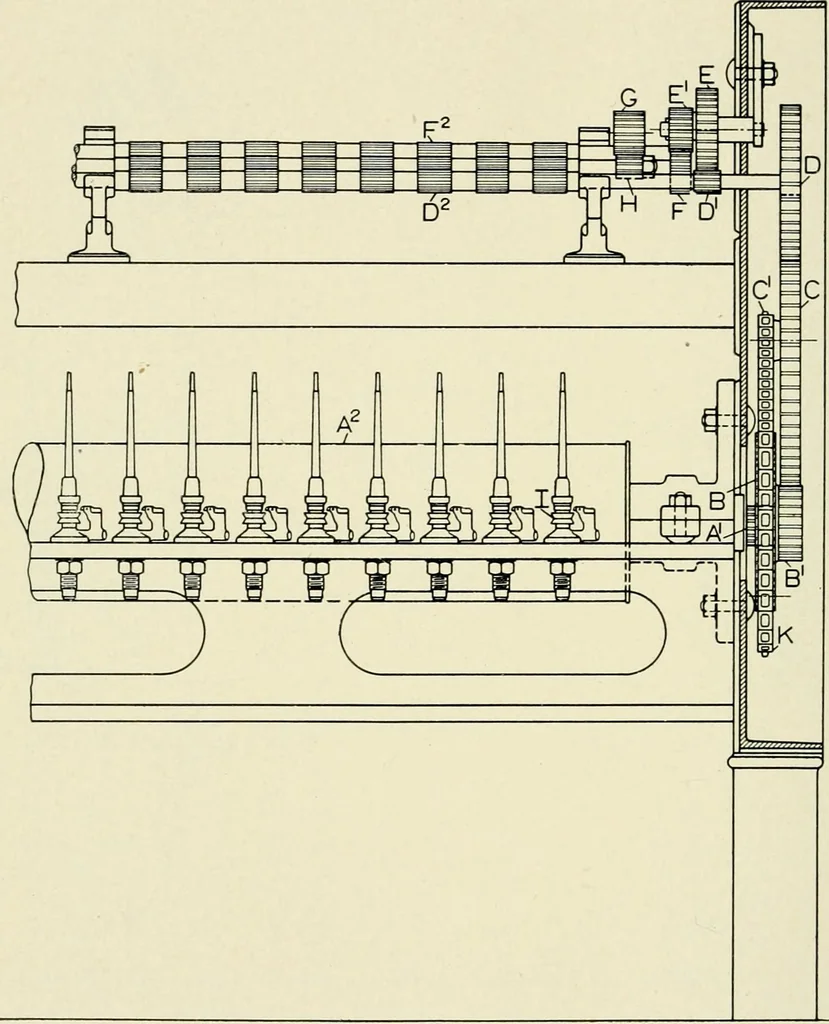

An illustration from Illustrated catalogue of cotton machinery built by Howard & Bullough American Machine Company, Ltd., Pawtucket, R.I., U.S.A. : opening, picking, carding, drawing, roving, spinning, twisting and winding machinery : warpers and slashers : containing also floor spaces, speeds, productions, gearing diagrams, useful tables and other information, 1909, leaf 167 — SECTIONAL VIEWRING SPINNING FRAME 10^ … SIDE VIEWRING SPINNING FRAME 163SPINNING FRAME. ALPHABETICAL REFERENCES TO DRAWINGS. A Driving Pulley, 8 in. to 18 in. dia., advancing by Yz in. increments ; 3X in. face.Ai Cylinder Gear, 17, 21, 29 and 39 T.A- Cylinder, 7 in. dia.B Jack Gear, 72, 76, 86, 96 and 106 T. B^ Twist Change Gear, 25—67…

Howard & Bullough American Machine Co · Cotton machinery · Cotton machinery industry -- Rhode Island Pawtucket · Textile machinery industry -- Rhode Island Pawtucket

Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
