Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 120

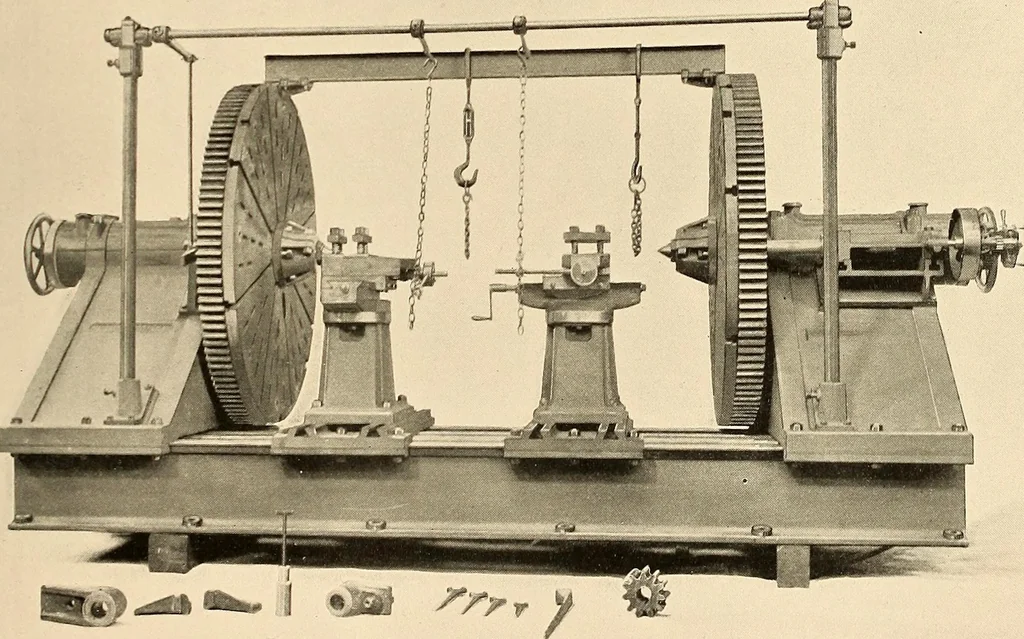

4 belt. Complete with countershaft, wrenches, ratchet boxes, and rock-shaft for feed. Fast and loose pulleys on countershaft, 24 by 7. Should make50 revolutions per minute. Wheel quartering and hub facing attachiiioit, extra.Splining attachment for hubs of wheels, extra. Pateyit hoisting… … 80 WHEEL-TURNING LATHE. With two geared heads and two compound slide-rests with self-acting feeds.Both heads have heavy steel sliding spindles and steel extensions bolted to face-plate, with clamp for projecting end of spindle. Extra heavj gearing all cut fromsolid steel. Height of centres, 404,…
Machine-tools · Machinery
