Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 142

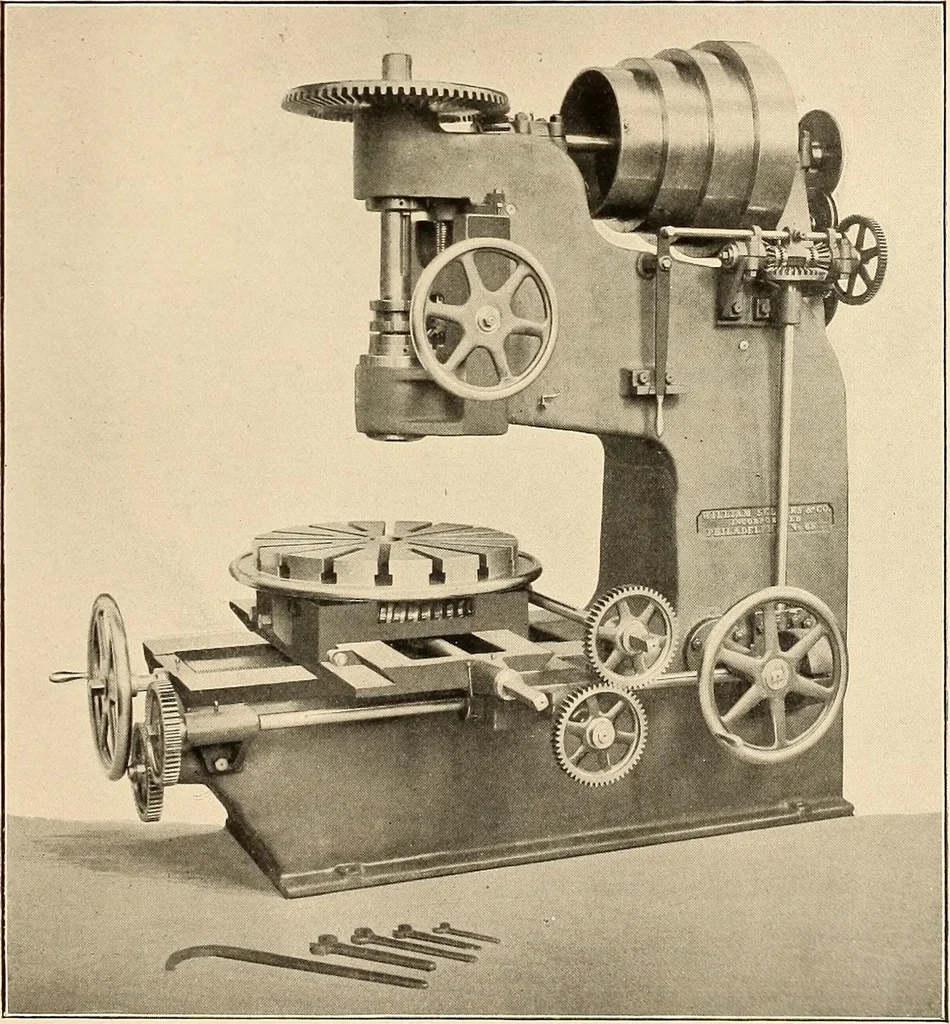

e passes the specimensbetween the cutters, reducing the central portion to the required width. Variablefriction feed, quick hand adjustment, and automatic stop or knock-out forend of stroke. Table gibbed to bed, driven by screw and nut, full .stroke, 32.Complete with chuck, two sample cutters,… … 27 VERTICAL MILLING MACHINE- Overreach of spindle, 27. Circular table, 26 diameter (or 30 ifrequired). Vertical movement of slide carrying spindle, 8. Travel of saddle onbed, 26. Cross travel of table, 28. Power feed to table in all directions throughmproved friction arrangement. Complete with…
