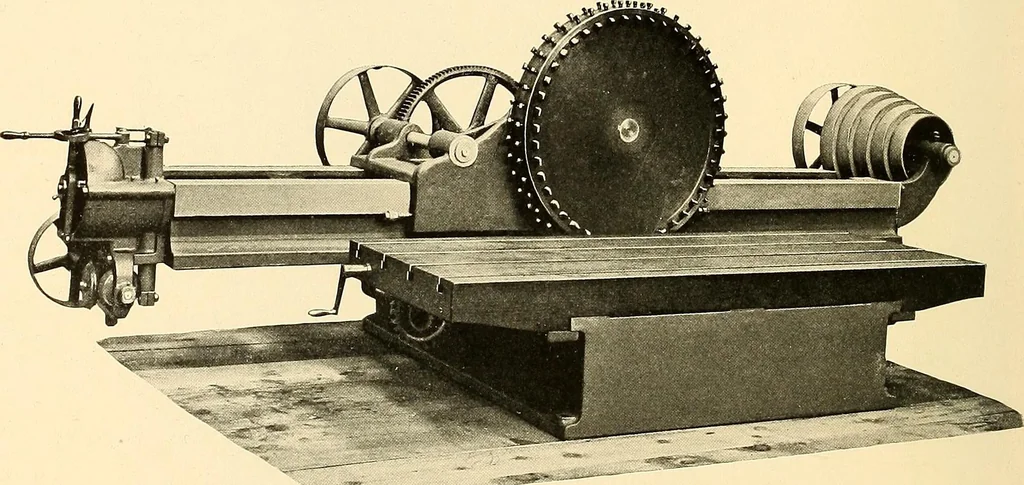

each of spindle, 27. Circular table, 26 diameter (or 30 ifrequired). Vertical movement of slide carrying spindle, 8. Travel of saddle onbed, 26. Cross travel of table, 28. Power feed to table in all directions throughmproved friction arrangement. Complete with pump, tank and circulating sys-tem,… … ROTARY PLANER. WITH 36 Cutter-Head, to Finish Work 6 feet Long. This machine is provided with 44 tools, arranged in a circle of 36 internaldiameter. Cutter-head is carried upon a heavy spindle, and supported by an ex-tended bearing which is as large as the head itself, and relieves the spindle…
