Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 39

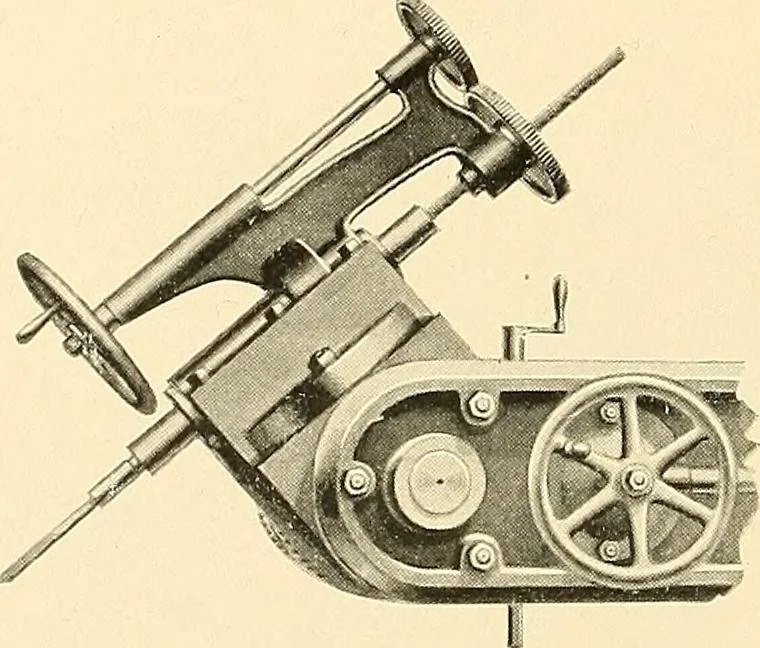

FOURTEEN-SPINDLE DRILUNG AND BORING MACHINE.FOR Water Tube Boilers. Has eight heavy drilling spindles and six boring cutters for flue holes.Width betw^en uprights 8 feet. Work supported upon rollers and fed by slide15 feet Jong arranged with spacing mechani.sm. Spindles fed together, but… … Universal Drilling Machine. The Universal Drilling Machine, shown on the opposite page, has beenfound very convenient for a great variety of work, especially for certain large pieces which it is difficult to move about.Such work is placed either in a pit at oneside of the machine or upon a…
Machine-tools · Machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
