Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 81

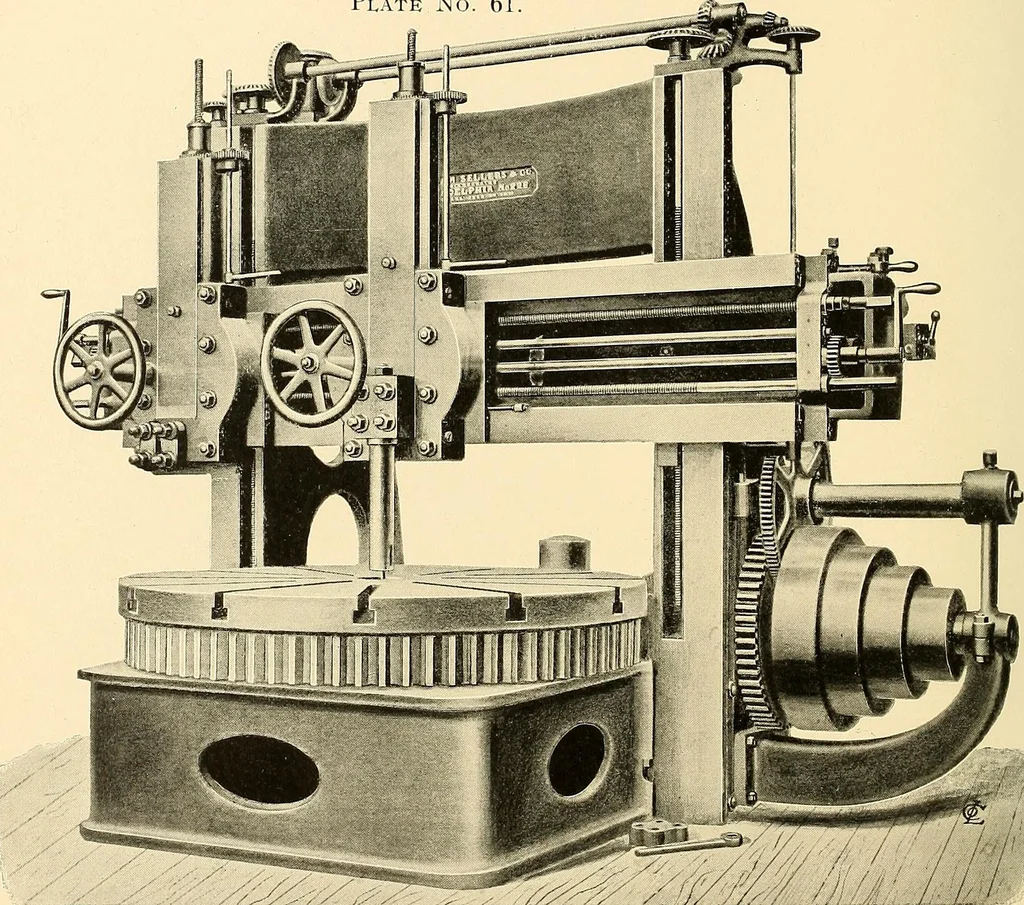

ork. Table dial max: justable saddle 42; two saddles with independent variable ratchet feed; vertical stroke J3; cross-head raised and lowered by-power; feed variable by J to ^s; self-contained, no independent foundation required; complete with countershafl, cranksaud wrenches. Fast aud loose… … EXTRA HEAVY 5-FOOT MILL—Designed for Steel Work. Diameter of table, 6i. Height under cross-head in highest position, 36.Steel vertical slides, having 22 stroke. Two saddles on cross-head with inde-pendent feed-motions, operated b)^ feeding mechanism at each end of the cross-head. Feed mechanism and…
