Illustrated instructions for setting up and running the Bickford family knitting machine, also for making the different articles thereon .. (1871)
Bickford, Dana. [from old catalog] · Hartford, Case, Lockwood & Brainard, printers · leaf 10

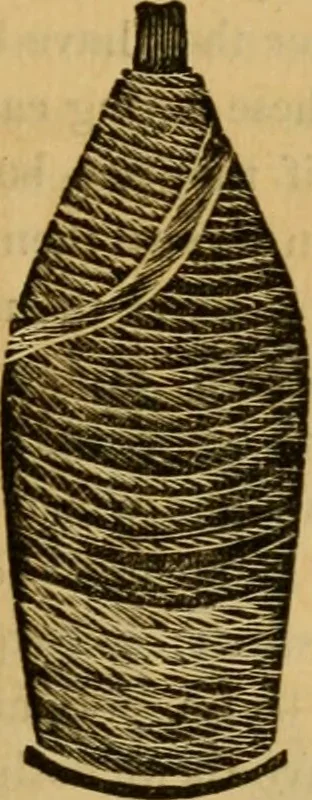

ndle.F — Buckle.G — Weights.K — Kevolving Cylinders.L — Needle Cylinders.V — Ring Clasp. WW — Cam and Screw for changing length of stitch.I — Indicator, to show distance moved.XX — Swing-cams and their thumb screws.PP — Pins for knitting flat web.R — Take-up.M — Set-up.N — Looper. BEWWm^ WW TEE… … Bonmx. WINDING THE BOBBIN. The winding a smooth, easy-running Bobbin, is one of the mostessential and important things to be learned, and the directions mustbe followed closely if you wish everything to go right, and prove sat-isfactory. Begin at the base and wind in the form of a cone (seecut); be…
Knitting machines
