Burn, Robert Scott · London : Ingram, Cooke, and Co. · leaf 123

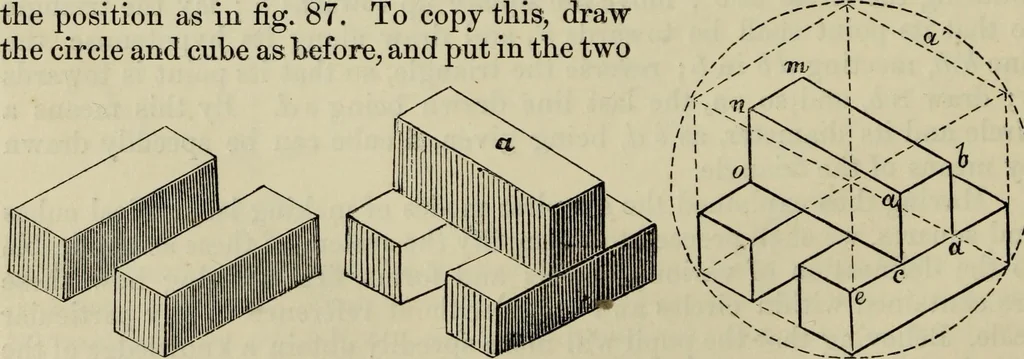

fig. 85. fig. 86. pupil will be able to draw in the representation as given. Fig. 87 givesthe isometrical representation of two blocks of stone. In fig. 88 a repre-sents a block laid across two blocks placed in … fig. 87. fig. 88. fig. 89. blocks as in fig. 87 ; then from e measure to c, fig. 89, and from c to d;measure and put in the height of the block from c d to a and b ; parallelto the side a, draw from a and b to n and m9 and from c to o ; join a b,n m, and no: the figure is complete. The two blocks…
Drawing · Wood-engraving
