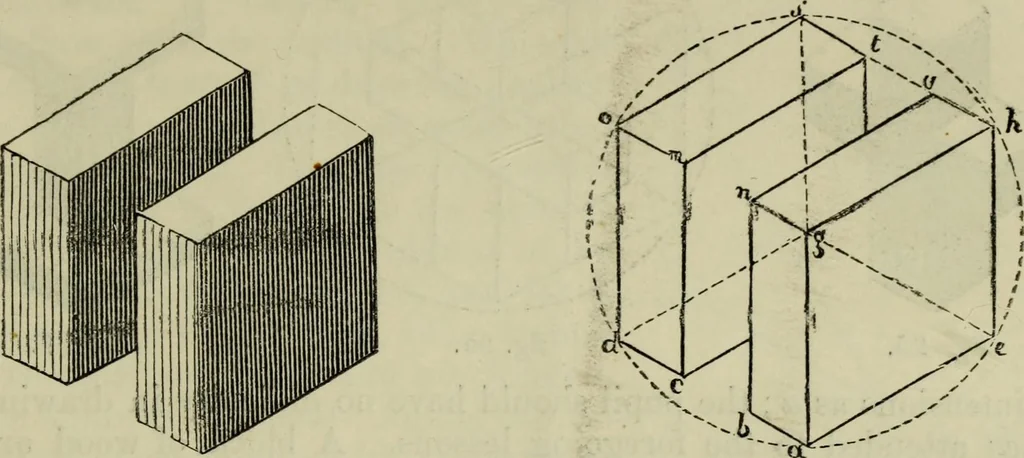

and b to n and m9 and from c to o ; join a b,n m, and no: the figure is complete. The two blocks on edge, repre- PERSPECTIVE DRAWING. 115 sented isometrically in fig. 90, will be copied very speedily by proceedingas follows : draw in the circle and cnbe as formerly; and from a measureto b, and from… … fig. 90. %. m. From c and d and b draw the lines b n, cm, and do, meeting the diagonalo e ; from h draw tvs, parallel to o g, the lines h v and t s ; and from g, n,m, o, draw to h, v, t, and s : the representation is complete. In fig. 92 is given the representation of an oblong block…
