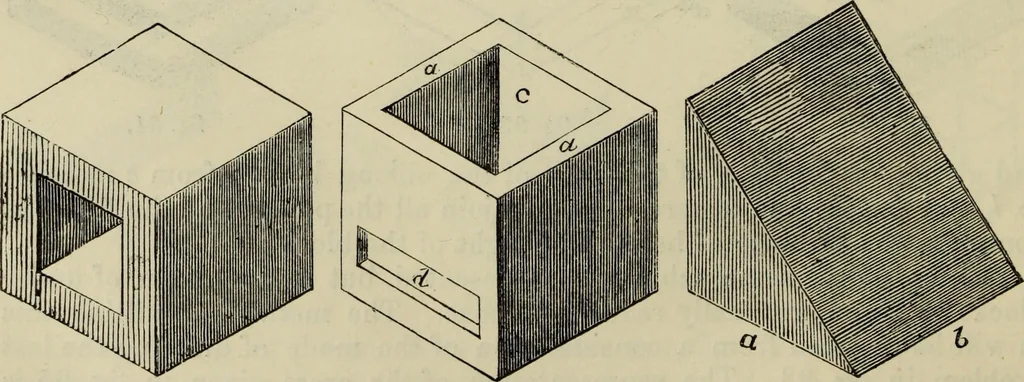

fig. 98. fig. 99. fig. 100. faces o and 6, fig. 99, are formed by the upper and right-hand sides of thecube mons and s t v n, fig. 100, the parts ccc being drawn by linesparallel to m s and s t, the line d being the line corresponding to e f. The … % 101. fig. 102. fig. 103 representation given in fig. 101 is a modification of the previous lesson; it PERSPECTIVE DRAWING. 117 shews the easy method of delineating the representation of apertures inwalls, boxes, &c. Thus in fig. 102 a representation of a box is given, a abeing the thickness…
