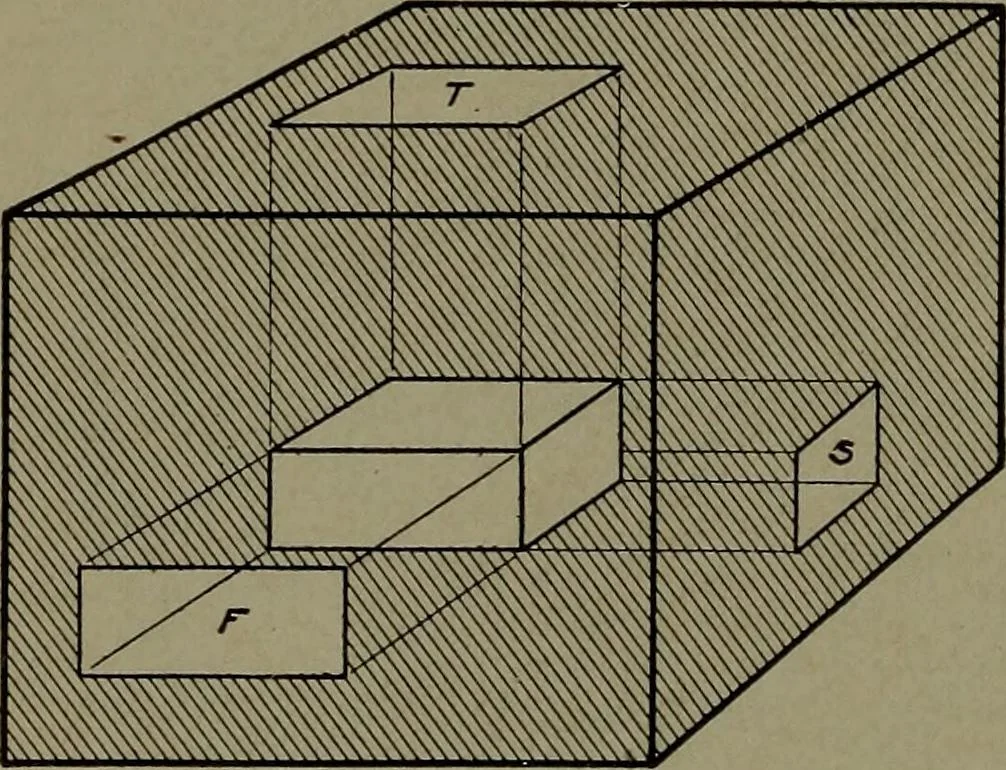

front elevation, the same princi-ples of projection being used asin the former case. The above procedure isequivalent to tracing on each sideof the box the outline of the ob-ject as observed by the eye, whendirectly in front of each side ofthe object; after this is done theunfolding of the box… … Fig. 3. Rectangular Block Within a GlassBox, the Surfaces Projected to the Top, Front,and Right-Hand Side
