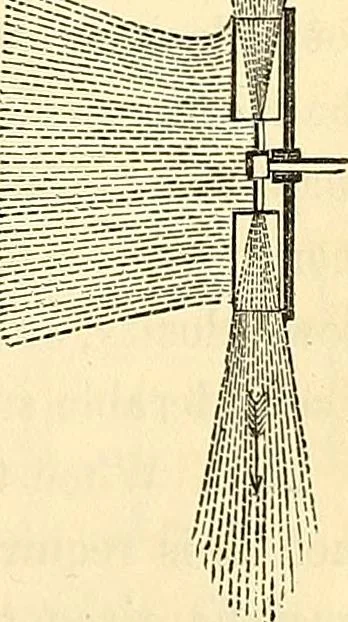

umber of revolutionsbe considerable, the air, as may be indicatedby the movement induced in smoke producednear it, will be seen to move in the direc-tion indicated by the arrows. 219. Instead of plain blades, others of acurved form may be seen in some fanners(Fig. 64), while the form of the curve… … 108 VENTILATION BY FANNER. 220. If it be required to lead air into the centre of the fan-ner for any special purpose, the external casing should be madeair-tight, so that no air can pass to the centre except by thecourse indicated by the arrows, and being discharged subse-quently at the opposite…
