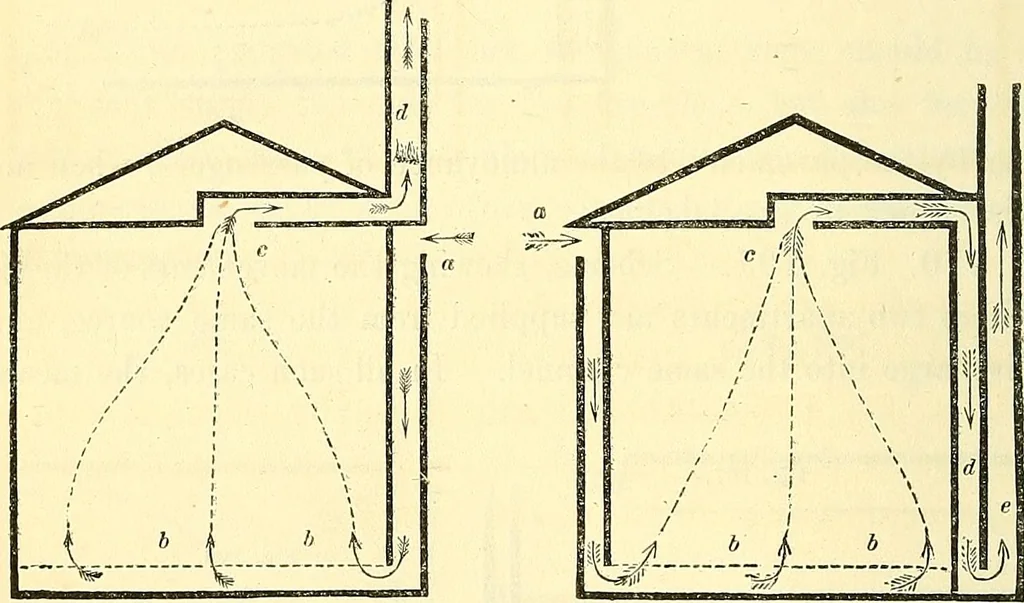

he air he unrestricted, the movementof the air is greater and greater the higher the temperature com-municated to the air. The introduction of a lamp under theventilating aperture increases greatly its power of discharge, andproduces, in an empty room, a similar effect. 272. Fig. 109.—A gas-lamp, a… … 273. Fig. 110.—Where circumstances do not admit of theheat being applied with safety above, the arrangement shewnin this figure may frequently be adopted with advantage. Theposition of the fire, lamp, or steam-pipe at e, is so far disadvan-tageous, in so much as there is a loss of power wherever it…
