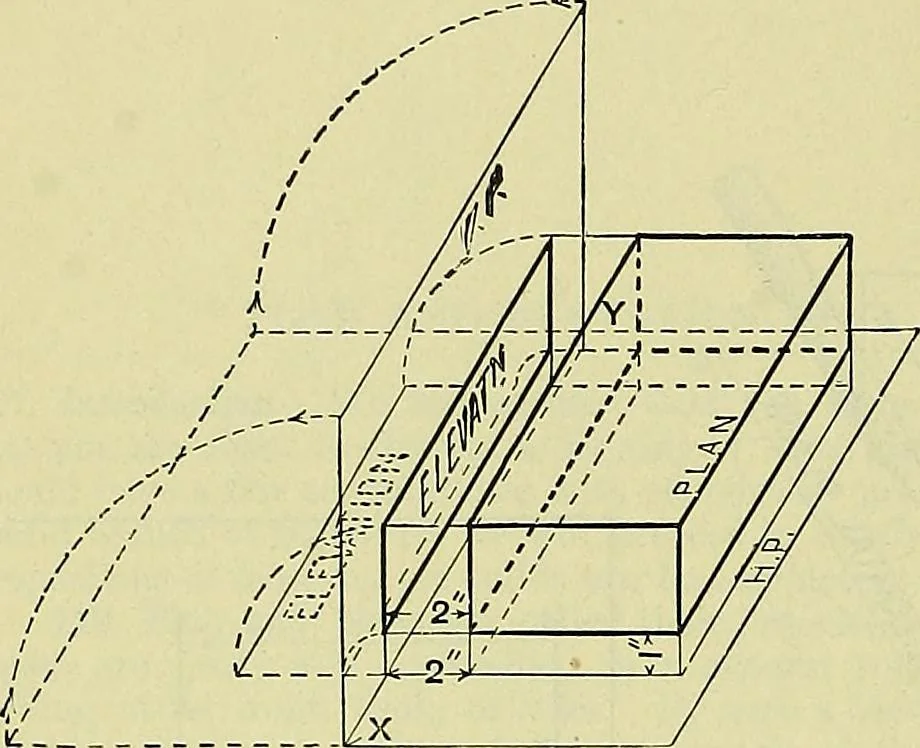

from it, the block will bein the required position. The figure clearly shows this position, and at this stage it will be instructive to compare this problem with the previous study (assuming that the box and the block are the samesize). It will be noticed that the plan in Fig. 292 is the same shape… … a I ELEVATION 0 I 2 4- 9PLAN Pig. 292.—Block in position, between folded drawing paper. Fig. 293.- 292, being 1 above XY, shows that it is1 high. Of course it will be noticed thatthe lines (projectors) connecting the blockwith its elevation are perpendicular to theV.P., and also the lines…
