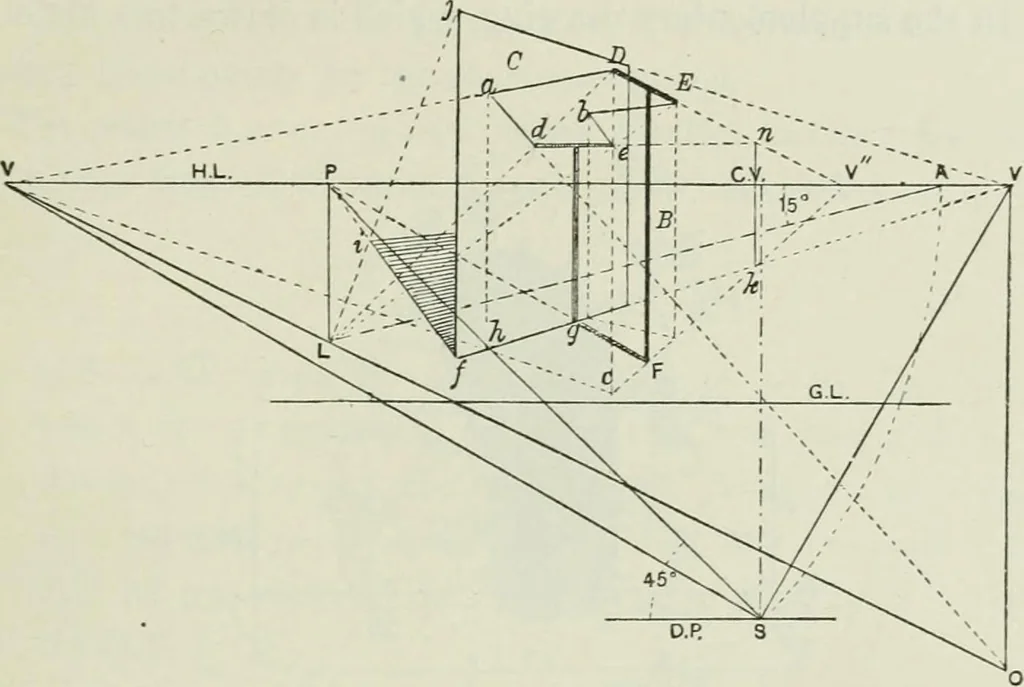

n a is the seat of D on the screen C. Deter-mine h, the seat of B, in a similar manner. Nom Y is the A.P. XI SCIOGRAPHY OR THE PROJECTION OF SHADOWS 215 Ibr the lines Da and Eh, lieuce to find the V.L. for an obliqueplane of shade we must draw a line from V through L to meeta vertical line from V… … Fig. 153 L in d. Find e, the shadow of E, in a similar manner, and joindc, which is the shadow of DE. Draw a line from Y to V, meeting the lower edge of C in g.Draw a vertical shadow of the bar B from g to meet de. Draw a line from / to P to meet a line from j to L in i.Draw a line from i to V.…
