Industrial drawing and geometry; an introduction to various branches of technical drawing (1911)
Spooner, Henry John, 1856- · London, New York [etc.] Longmans, Green, and co. · leaf 144

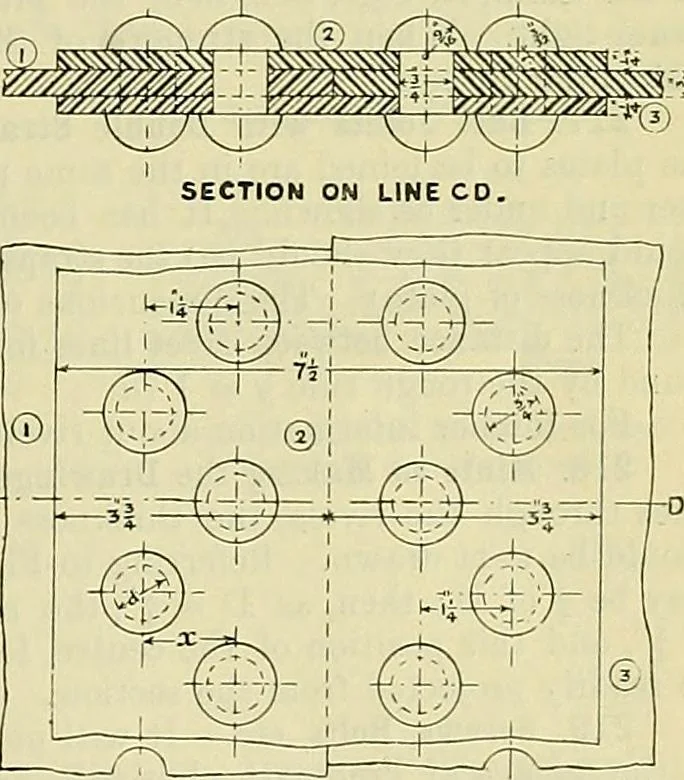

Figs. 392, 393.—Single-riveted lap joint. Figs. 394, 395.—Double-riveted lap joiut (chain). Figs. 396, 397.—Double-riveted lap joint (zigzag). Figs. 398, 399.—Butt joint with doublebutt straps or cover plates (zigzag). the actual length required depending upon the completeness with which the rivet…
Mechanical drawing · Geometrical drawing
