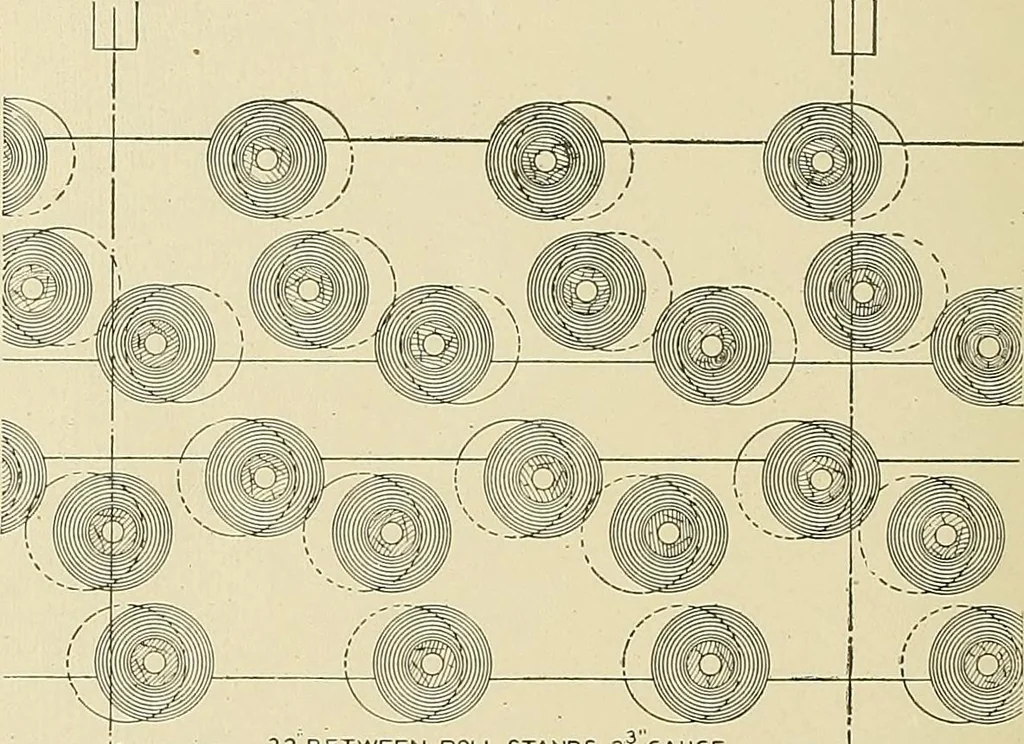

e wideenough to place four frames across the room so that an operativecan tend at least eight sides. A sectional elevation of a ring frame is shown in Fig. 192. Thevarious parts of the machine may be referred to briefly as the creel,C, for supporting the bobbins of roving, the roll stands, F,… … n ^ Fig. 193. Plan of Cieel for Double Koving. thread board, the ladder or spindle rail, I, spindle, N, ring rail, E^rings, L, drum, F, supports, P, creel rod, 0\ cross shafts, M,lifting rods, C^ separators, NS adjustable feet, J-, and drum box, W.The roving. A, from the top row of bobbins, is…
