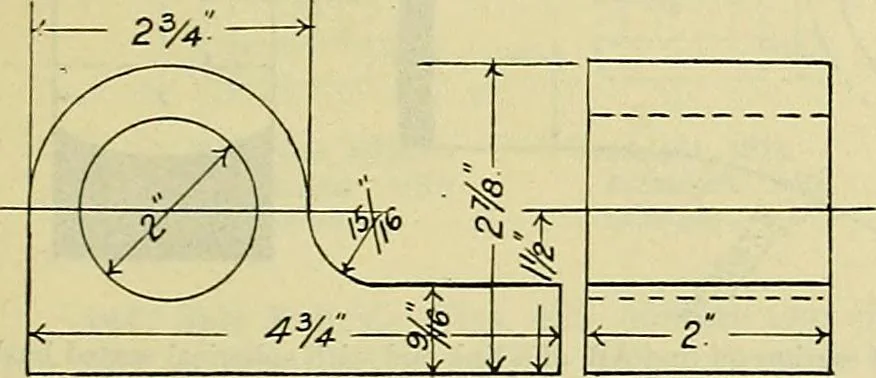

are to put in a suitable position. Scale fullsize. Draw the circular parts first, and the plan beforeyou decide upon the position of the hole. 239. The Figs. 455, 456 show two dimensioned vievi^sof a cast-iron foundation washer: one form of the washersused in connection with the bolts that hold…
