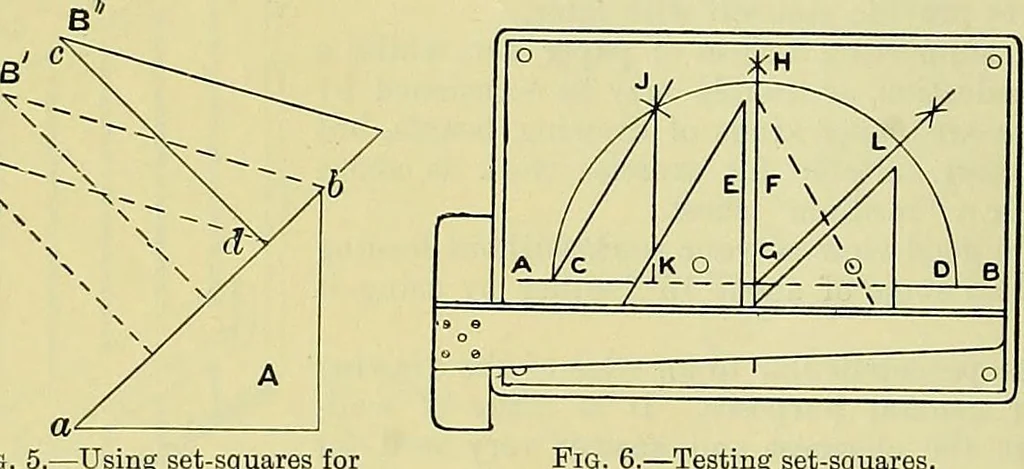

the set-squares on one another, asshown in Fig. 5, where the set-square A is held firmly on thepaper, and the other B is slid along the edge ah. Three posi-tions, B, B, B, of the set-square B are shown; the line cclbeing parallel to the corresponding lines drawn through B and B, and perpendicular… … -Using set-squares forparallel lines. Testing set-squares. DRAWING INSTRUMEiNTS, MATERIALS, ETC., AND THEIR USE 3 7. Drawing Paper.—Two kinds of paper are ia general use for drawing purposes: viz. Cartridge imper and Draiving 2iapcr. Cartridge (or Machine-made) drawing paper is used for ordinary…
