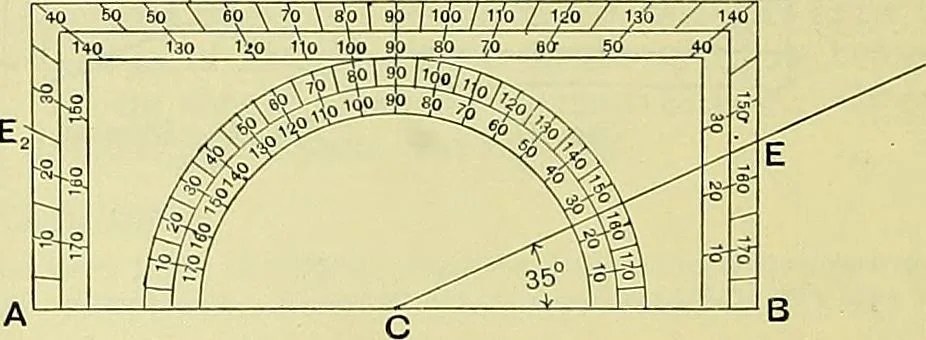

Pig. 42.—Construction of angles. Pig. 43.—Setting out an angle with the protractor. 90°, and the angle between the arms of the straight ILae ACB wUl be 180°. Obviously, if we bisect the angle BCD in E, we get CE inclined 45°to CB. Other angles can be constructed with equal facility. Thus, if we…
