The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)
Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 649

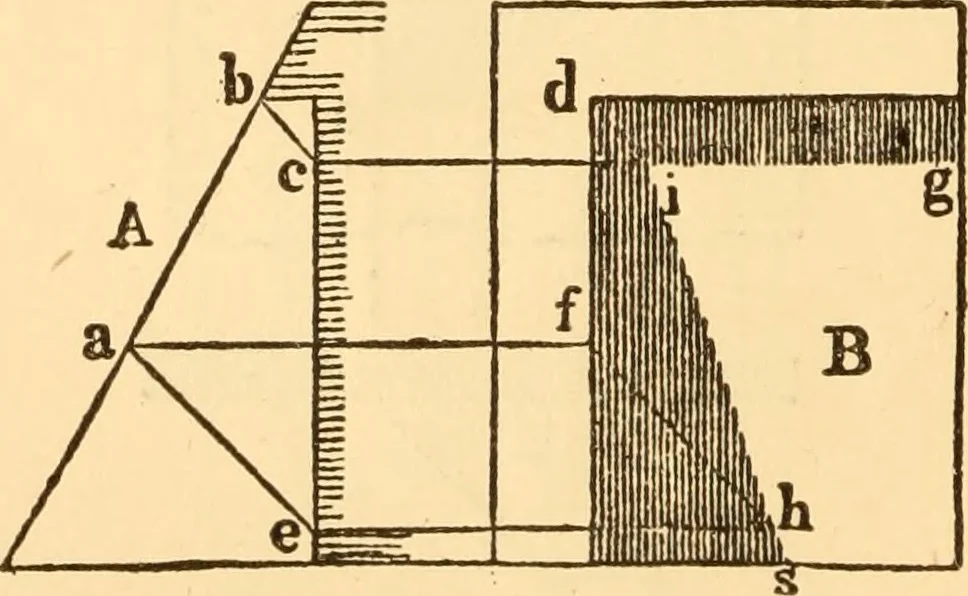

I Fig. 437. of proceeding can be seen by reference to the precedingexamples of inclined shelves, etc. 575.—To Find tlie glaadoAv in a Reees§.—From the pointa {Fig. 437) in the plan, and b in the elevation, draw the raysac^wdi be; from c erect the perpendicular ce, and from e … Fig. 438. draw the horizontal line cd; then the lines cc and ed willshow the extent of the shadow. This applies only wherethe back of the recess is parallel with the face of the wall. _ 676.—To Find tlie Sliadour in a Reec§s, ii^lien llie Faceof the \l^aH is Inclined^ and the Back of the Recess…
Carpentry · Architecture · Building
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
