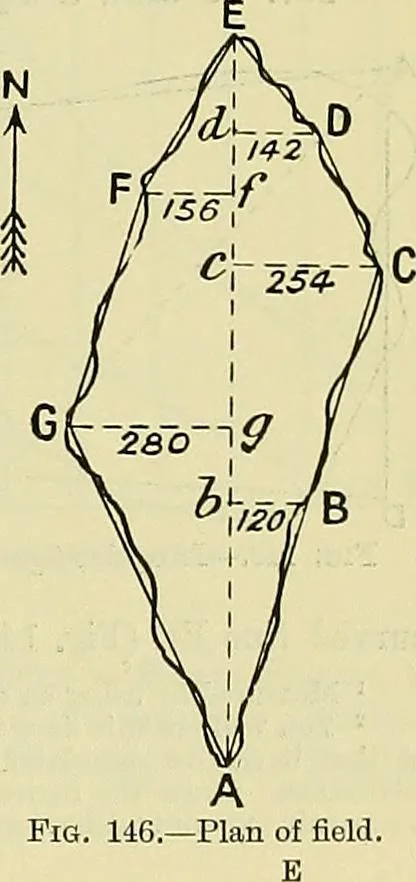

enboundary line of the field. This necessitates occasional offsetsbeing taken, to the right or left as may be required, and theseoffsets are measured by what is called an offset-staff, a roundwooden rod, usually 10 links in length. The offsets are enteredin the field-boolv by taking a separate… … 50 INDUSTRIAL DRAWING AND GEOMETRY 106. To find the Area of a Rectilinear Enclosure in Sc[uare Feet.—Let Fig. 147 be the enclosure, with the measurements in feet/tabulated in the field-book as in Ai-t. 105. Then we have : — Field-book. Feet. ToD 140 120 C35 E40 90 30 B50 From A Calculation op Abea.…
