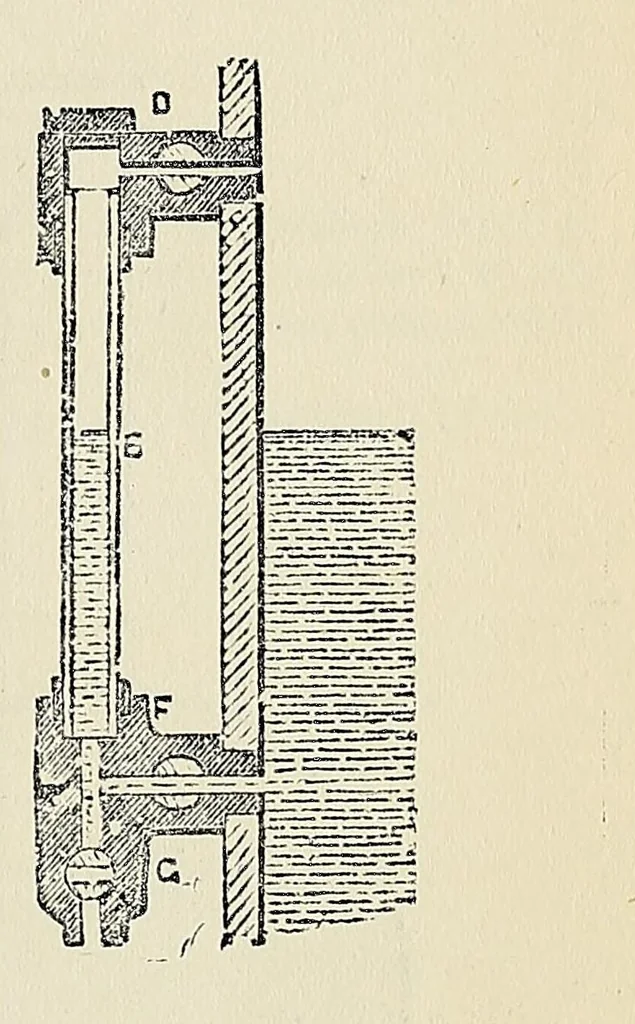

used for stationary engines. A is a box fixed over a hole B in the upper varying from 20 lbs. to 50 lbs. per square inch surface of the boiler, having a truly-faced seat¬ above atmospheric pressure. We will suppose that the weight of the valve and stem is 5 lbs., ing on which the valve C can rest.… … Fig. 269. — Water-gauges for Steam-Boiler. the escape of steam round the stem. A pipe D end is 30 inches, the lever itself being of uniform conducts the steam that passes the valve, when depth and thickness, and weighing 9 lbs. it is lifted, to the chimney or elsewhere. The The area of the valve (a…
