Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 148

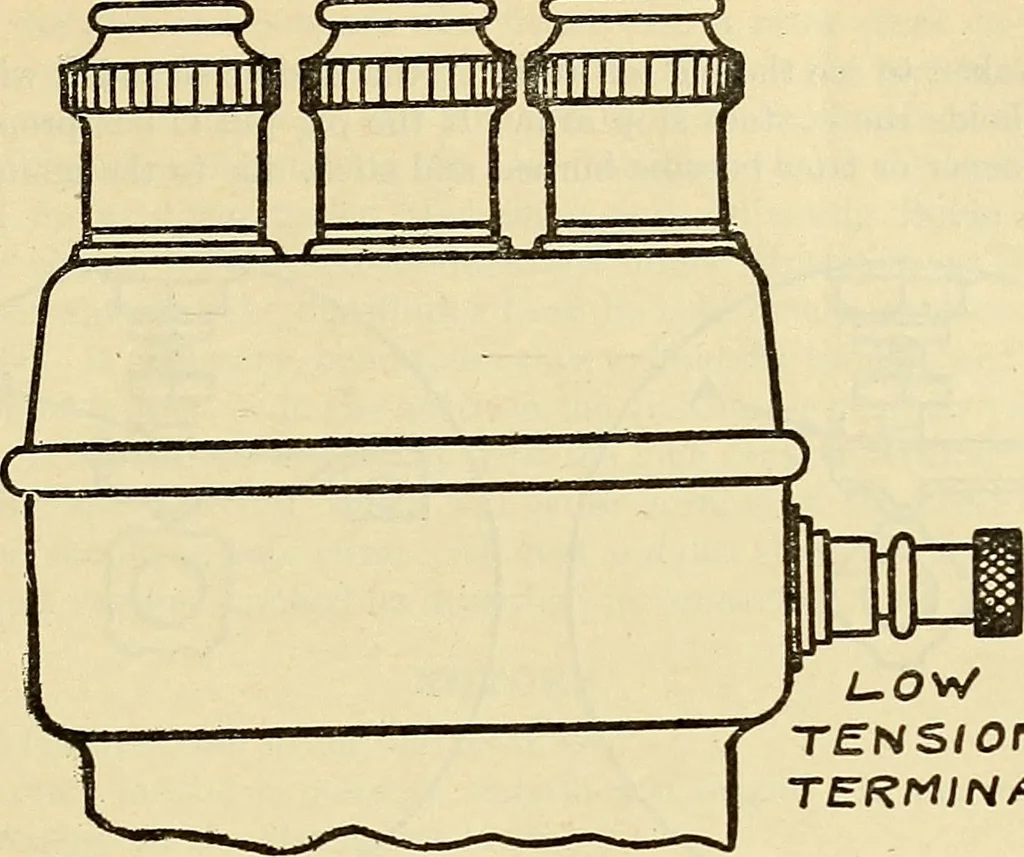

RESISTANCEUNIT Fig. 52.1915 COLE 4-40 DELCO SYSTEMSHIGH TENSION TERMINALS 145 … L.OWTENSIONTERMINAL Fig. 56. HIGH TENSION DISTRIBUTOR This high tension distributor differs from the usual form of ignition systems in that itembodies in one unit a timer, means of advancing and retarding the spark, and a high tensiondistributor. It requires but one induction coil for any number of…
Automobiles
