The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 553

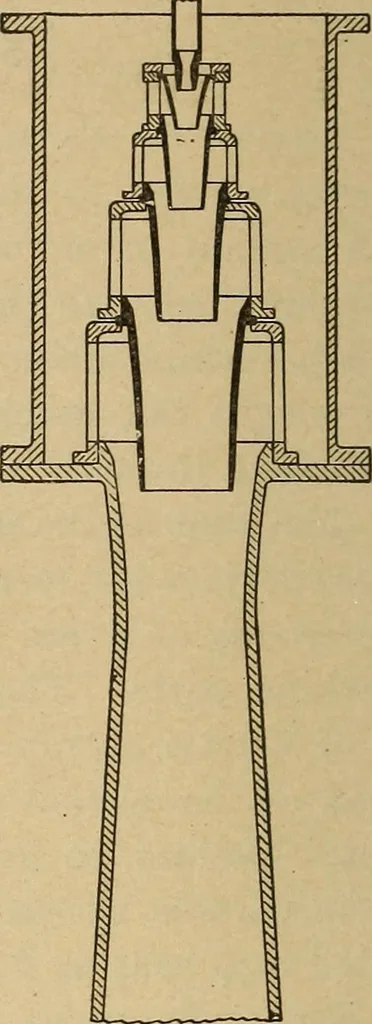

Fig. 383. — Locomotive Smoke Box. Fig. 384. — Forced-draft Blower. mixed jet—the action approaching that of the injector in this re-spect. Note how the entering air is split up into several concentricdivisions, with the intention of reducing the eddy loss during the mixingoperation. The following…
Steam-engines · Steam-turbines
