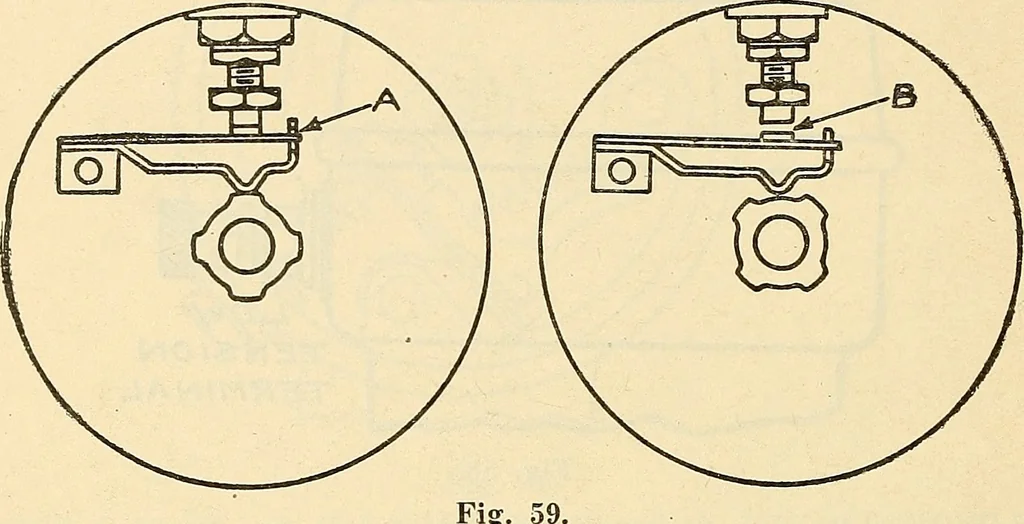

ime the contacts open, a broken-down condenser is indicated, which, of course, should be 146 INFORMATION replaced by a new one. A very small spark may sometimes be observed even with a goodcondenser. Care must be taken to see the pig tail (that is, the flexible stranded wire) is held firmlyby the… … CONTACT MAKER ARMS AND ADJUSTMENTS To adjust the distributor contact note the following instructions: When contact arm isdirectly on top of lobe of cam the distance between points A, Fig. 59, should be about fifteenthousandths of an inch. When the lobe of cam of timer has broken contact with the…
