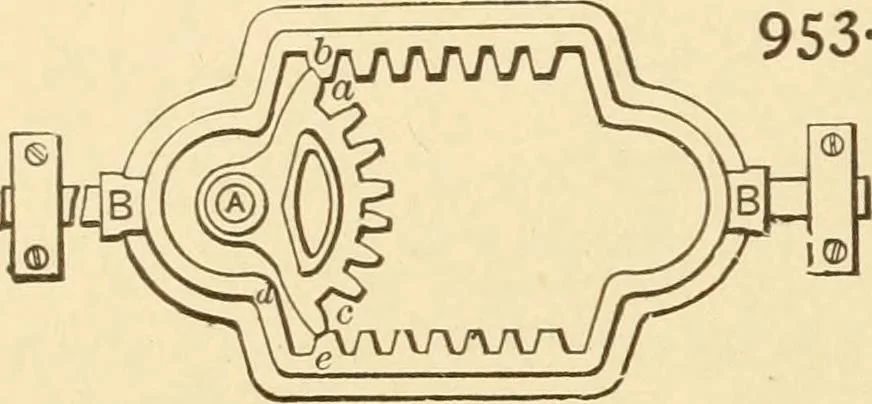

ALTERNATING RECTILINEARMOTION by the revolution of a sec-tor by which one revolution producesboth motions. The curved back ofthe sector just touches the extendedtooth of the rack frame at //, while the teeth at e and b are partly inmesh with the enlarged sector end teeth, thus preventing…
