Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 164

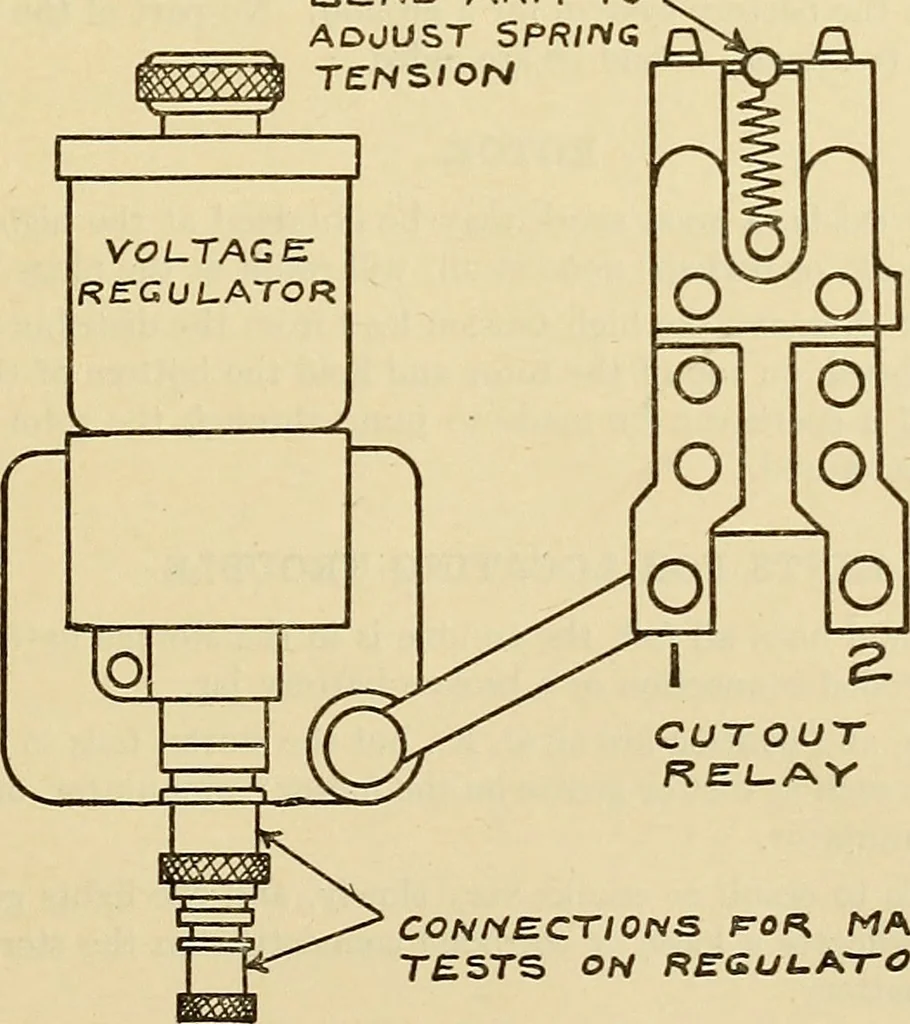

l not generate. The two indications go hand in hand in all cases. In order to test for and remedy the above difficulties, proceed as follows:Depress starter button and if armature does not revolve, remove the lead to the bottomterminal and voltage regulator tube, and connect the same lead to the… … CUTOUT RELAY CONNECTIONS rOR> MAK/N5TESTS ON REGULATOR Fig. 74. It is also well to check this out in another way, namely, by allowing the engine to run,and observing whether at normal speed the cut-out will remain open. This will also indicatea burnt-out voltage regulator resistance. Under these…
