Kirkman, Marshall M. (Marshall Monroe), 1842-1921 · New York and Chicago, The World railway publishing company · leaf 295

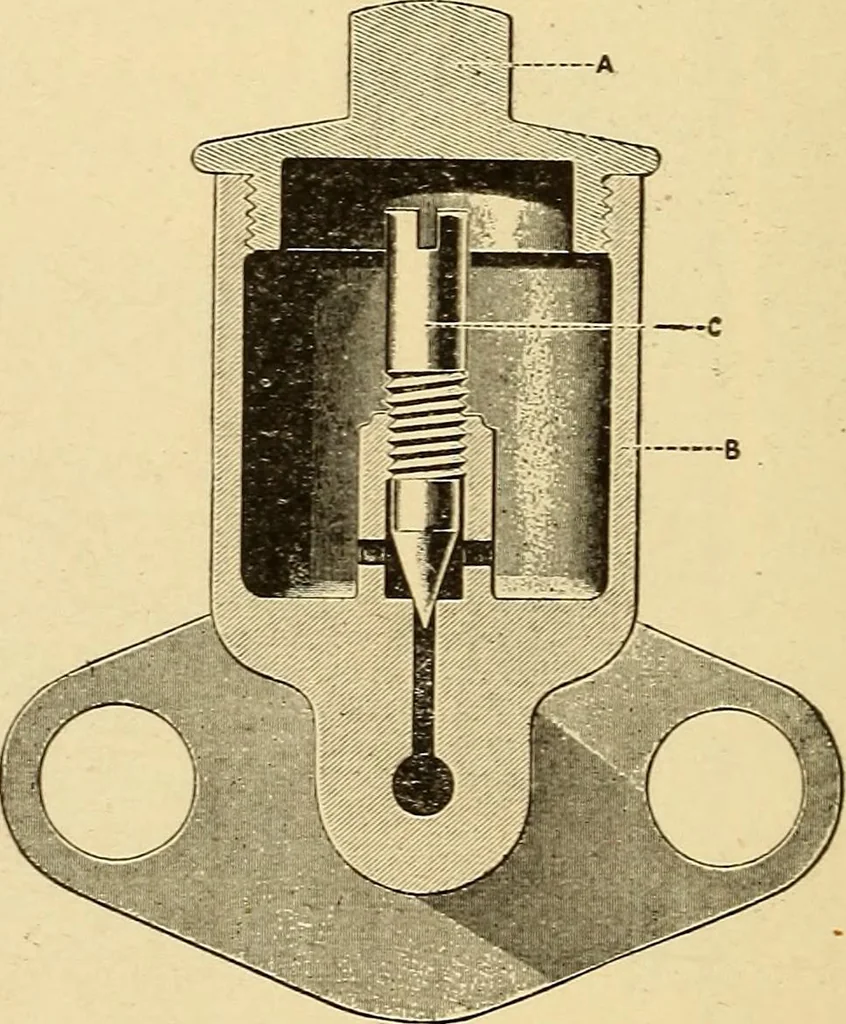

d Figs. 1 and 2 illustrate a common typeused for this purpose. A is the cap or cover, B the body and C the adjust 286 LOCOMOTIVE APPLIANCES. able feeder (Fig. 1). By turning the screw feed to theleft the needle feed is opened to any extent desired,and by turning to the right it may be entirely… … Fig. 5.Oil Cup for Front End Main Rod on Cross Head. turbing the regulating device, and will not feed exceptwhen the engine is in motion. The spindle D, Fig. 3, is thrown up and downagain with each revolution of the pin, and a smallamount of oil is churned down to the bearing. Asthe bottom end of…
Locomotives
