Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 281

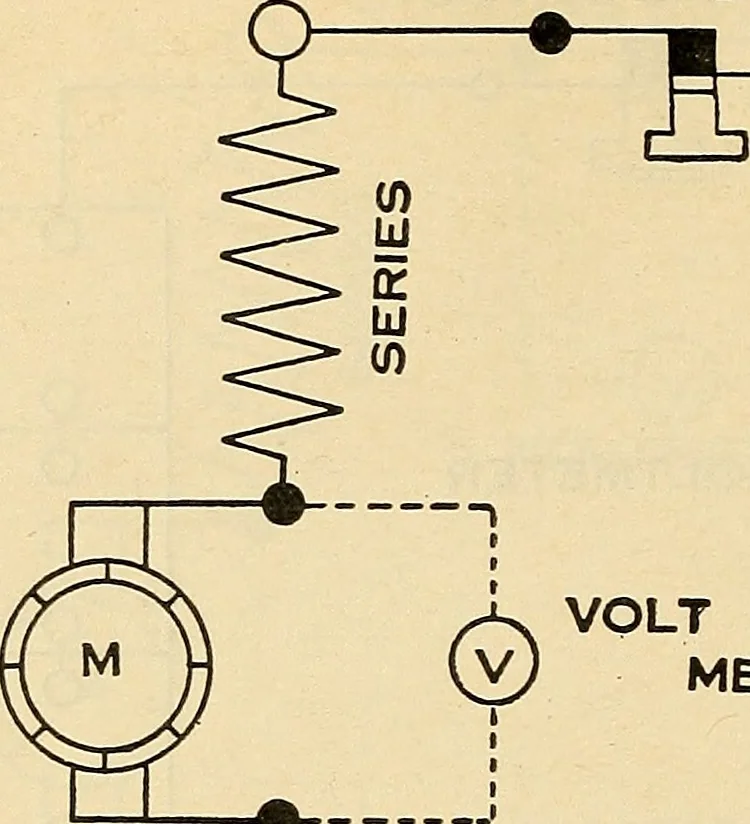

FIG. 15 Figure 15. This shows the voltmeter connected to the brush end of the fieldcoil and to the battery. If voltage was all right when test was made as shown inFigure 14, and voltage is low or no voltage at all is shown in test Figure 15, thefield coil is open or there are loose or poorly… … VOLT METER O % % FIG. 16 Figure 16. This shows the starting switch closed and the voltmeter connectedat the brushes of the starting motor. If voltage is all right at this point, then in-spect the conditions of the commutator and brushes as described under Figure 14. STARTING SWITCHO -o-
