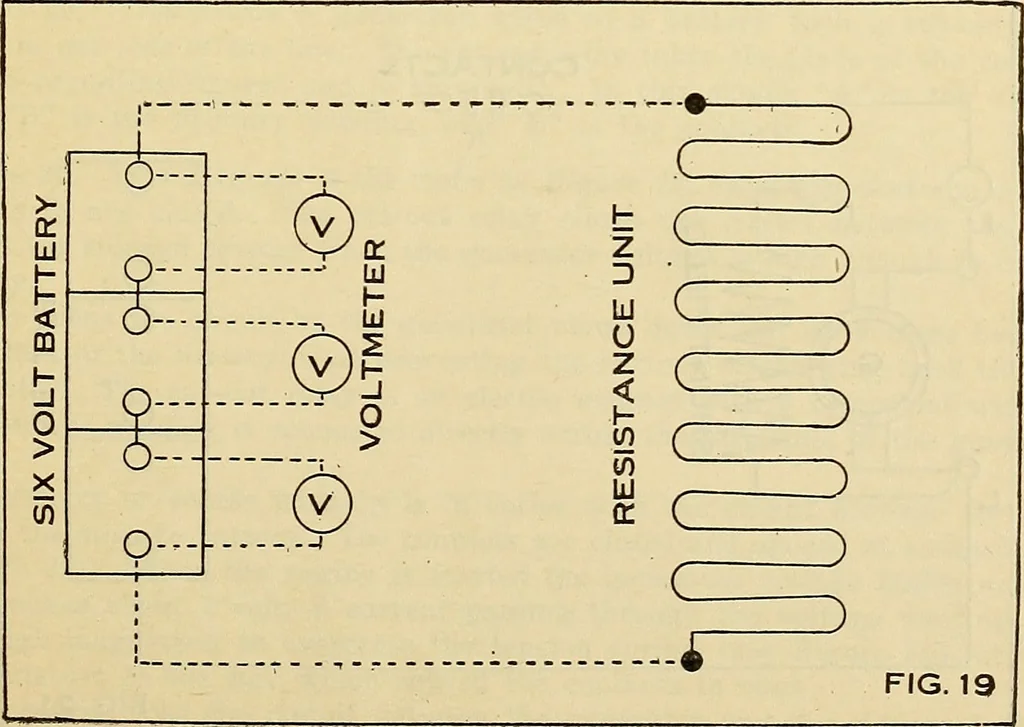

n the form of a spiralspring. Then stretch the spring so that when the ends are released that no twocoils of the spring touch each other and short out a part of the wire. This maybe used as a resistance unit. Then connect voltmeter as shown. The voltmeter should indicate six volts or a little over.… … 280 INFORMATION Figure 19. This shows three positions of the voltmeter connected to a singlecell. Leaving the resistance unit connected to the battery as shown in Figure 18,test each cell, for voltage separately. If voltage of all cells is alike, the troubleis likely due to discharge. If the…
