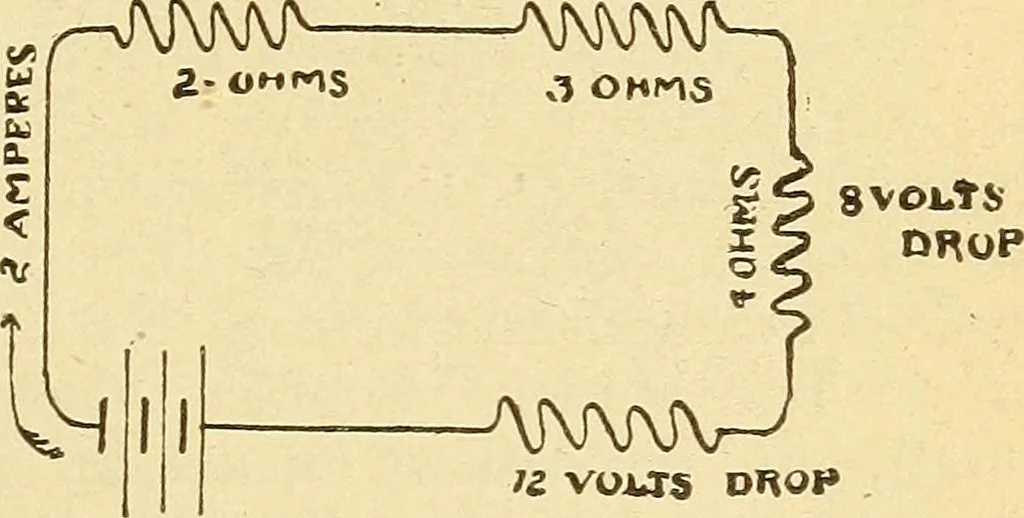

connected to the points H and K, and in- dicates 4 volts. When thevoltmeter is connected acrossthe 3 ohm spool B, 6 volts areindicated. The current is thesame as through spool A, theresistance, however, being1£ times as great as A re-quires, also lj times thevoltage that A requires.Spool C has 4… … JZ VOiJS DROH i\0 VOLTS Fig. 216.—E. M. F. and PotentialDifference in a Circuit. spool A the calculated voltage isE = C X R = 2 X 2 = 4 volts. The results of the measurementsacross the four spools by a voltmeter are indicated in Fig. 216,the sum of the volts drop on all the spools is 4 -f 6 + 8 4-…
