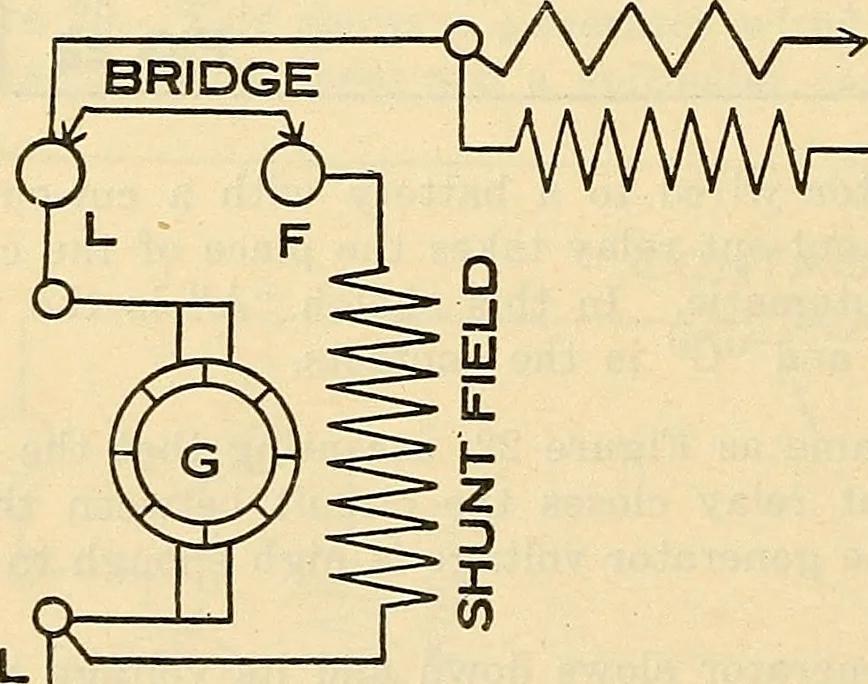

current then flowing through the coarse winding increased the pull on thearmature and gives a good contact of low resistance at the contact points. Whenthe generator slows down and its voltage drops below that of the storage battery,the battery sends a reverse current through the coarse wire… … O % % 0 FIG. 24 Figure 24. This shows a bridge between terminals L and F of the gen-erator. When an external regulator is used and generator does not generate, maketest as shown by bringing these terminals together with a piece of wire. If gen-erator now generates, the difficulty lies in the…
