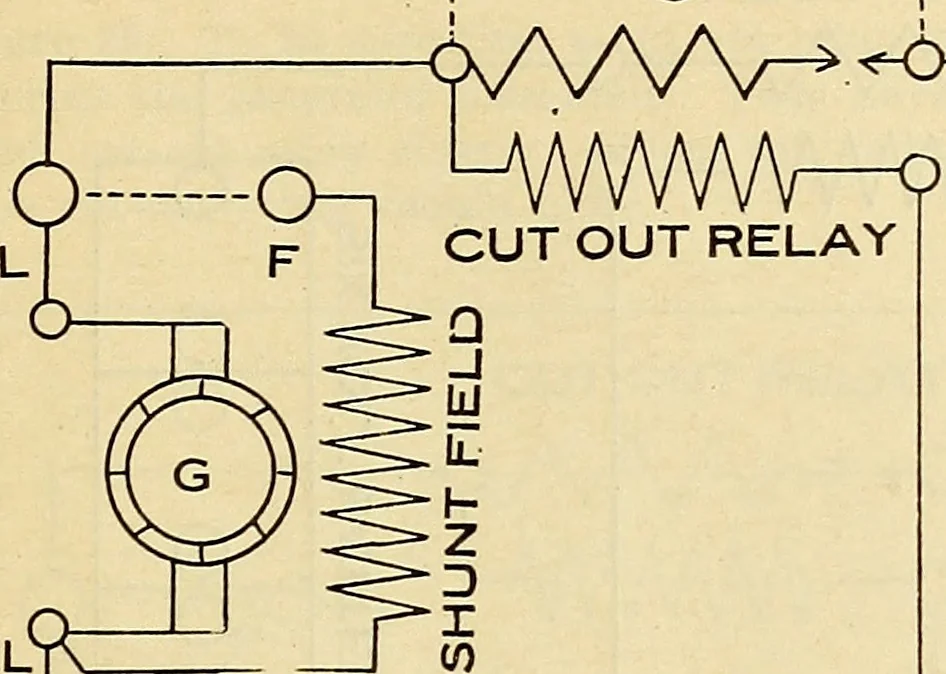

O % % 0 FIG. 24 Figure 24. This shows a bridge between terminals L and F of the gen-erator. When an external regulator is used and generator does not generate, maketest as shown by bringing these terminals together with a piece of wire. If gen-erator now generates, the difficulty lies in the… … O o FIG. 25 Figure 25. This shows an ammeter connected across the primary terminalsof the cut-out relay. If, when the generator is running and it does not close atthe proper time, test as shown. If generator is generating, the ammeter will showa reading. This indicates an open circuit in the…
