Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 290

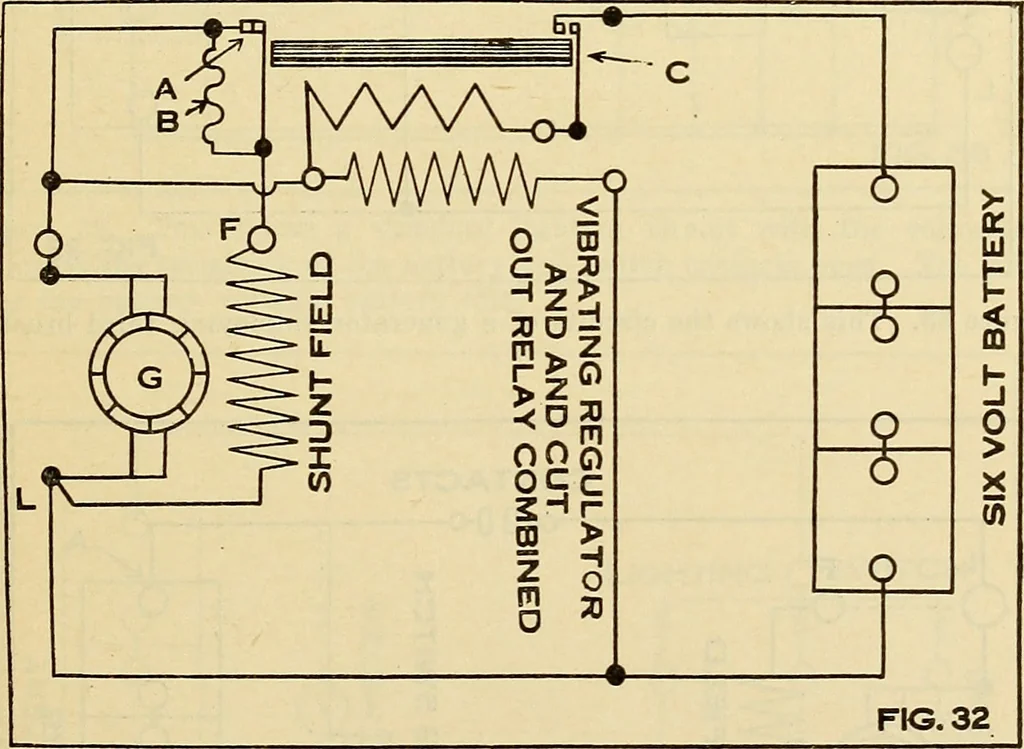

o be graduallyreduced as the battery nears a state of complete charge until finally the plunger isalmost completely withdrawn from the mercury, throwing the entire length of theresistance coil into the shunt field circuit, thus causing a condition of practicalelectric balance between the battery… … Figure 32 shows the vibrating regulator type of regulation. In this figureis shown a combination cut-out relay and vibrating regulator combined in a simpli-fied form, so they may be easily understood. The relay core is shown above the coarse winding. A is the regulator con-tacts, B is regulator…
Automobiles
