Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 298

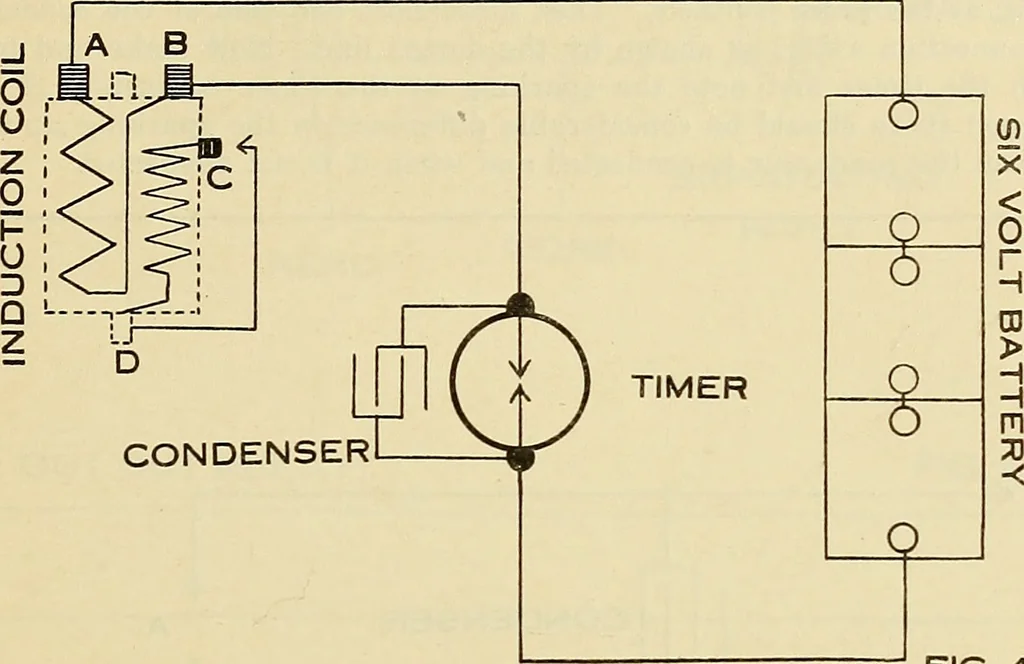

and a storage battery. If the stor-age battery does not show a reading, the secondary winding is open. If the sec- _J0 uz 0 H- u DQZ vj/A ! J_lE 3 ! 1 c 6 9 1—r 6 9 i ) yy L ) VOLTMETER FIG. 46 ELECTRIC TESTING 295 ondary is all right, the voltmeter should show a reading of about half the voltageof… … FIG. 47 Figure 47. This shows a standard battery ignition circuit using a timer. Notethat the condenser is connected across the timer contacts. By making and breakingthe primary circuit at the timer contacts and connecting a piece of wire to thesecondary terminals of the coil, as shown, a spark…
Automobiles
