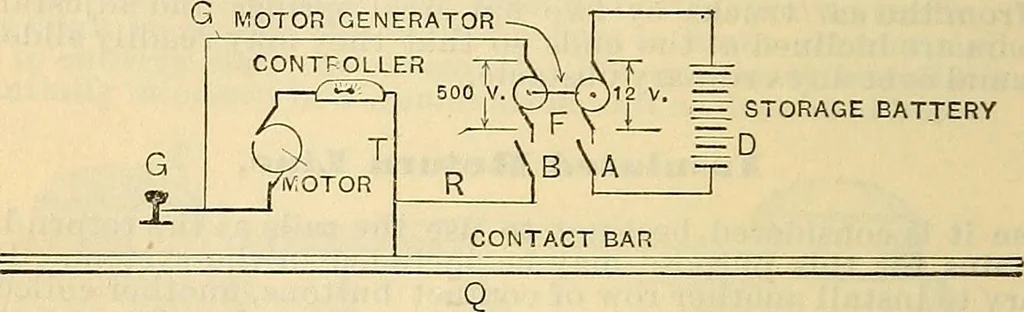

CHANNEL IRON Fig. 104. Section of Track Equipped for Street Railway Service. When, as is sometimes necessary, the buttons are placed in a single row,it is necessary that the pick-up current should be of the same voltageas that of the main circuit, and consequently the car-wiring indicated inFig. 96… … Fig. 105. Diagram of Car-Wiring. Referring to Fig. 105, the method of picking up the current is as fol-lows : Switch A is first closed; this completes the circuit from a storagebattery D, through a small 500-volt motor-generator F, which immediatelystarts. As soon as it is up to speed, which only…
