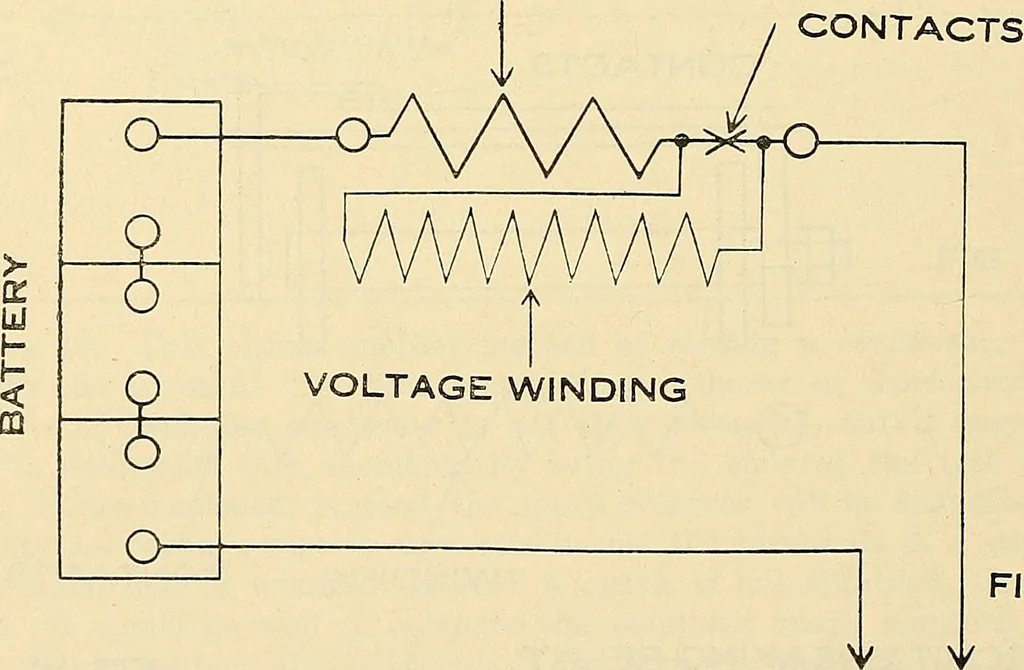

FIG. 52 certain amount of current is taken through it. It will vibrate until the current isturned off or the amount of current flowing through it is back to the amount it isset for. The circuit-breaking relay acts as an automatic fuse. PRIMARY WINDING … FIG. 53 LIGHTING SWITCH Figure 53. This shows the circuit of a lockout circuit-breaking relay. Notethat there as two windings, a primary and a holding coil. The contacts are in aclosed position. Figure 54. This shows the same circuits as shown in Figure 53, excepting thatthe relay contacts are…
