Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 305

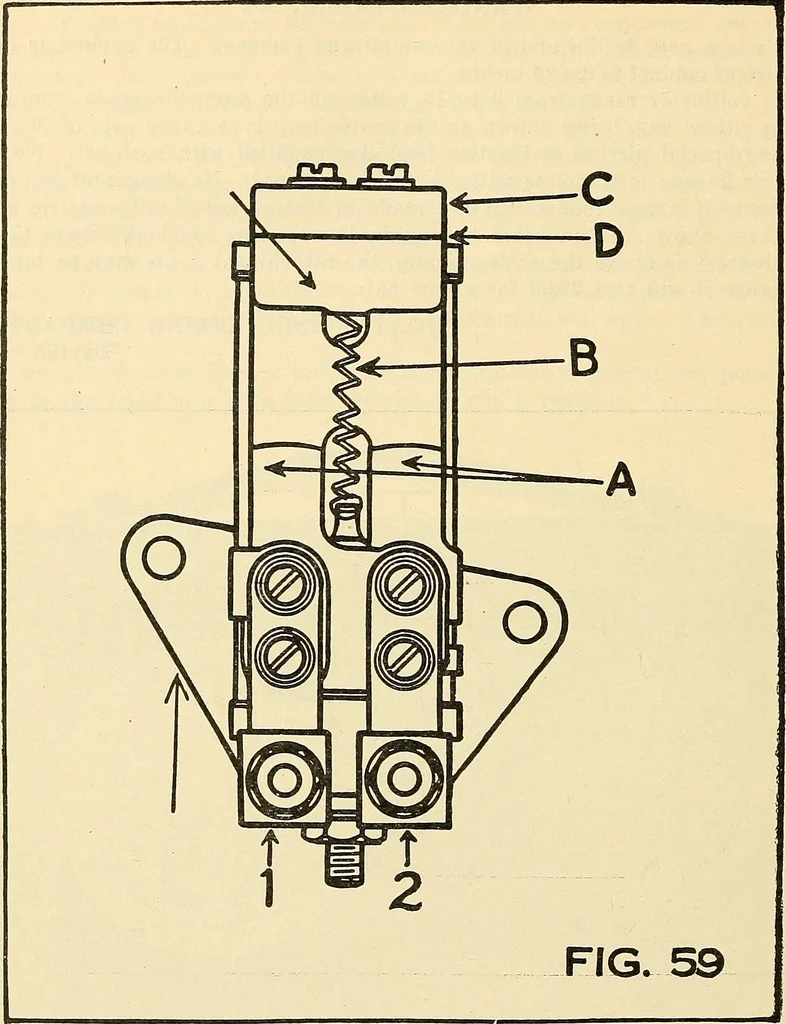

0 volts. Touch oneend of test cord to frame of relay and the other end to terminal 1, and then toterminal 2. When terminal is touched and lamp burns or a spark is produced, this is theother end of the fine winding. This terminal should be connected to the generator,and the other terminal, where the… … Figure 60. This is used to show a hydrometer. This is the part that is in theglass barrel of a hydrometer syringe. The hydrometer is used to test the specificgravity of the electrolyte of storage batteries. Directions for using are as follows: After removing the filling plug from the cover of the…
Automobiles
