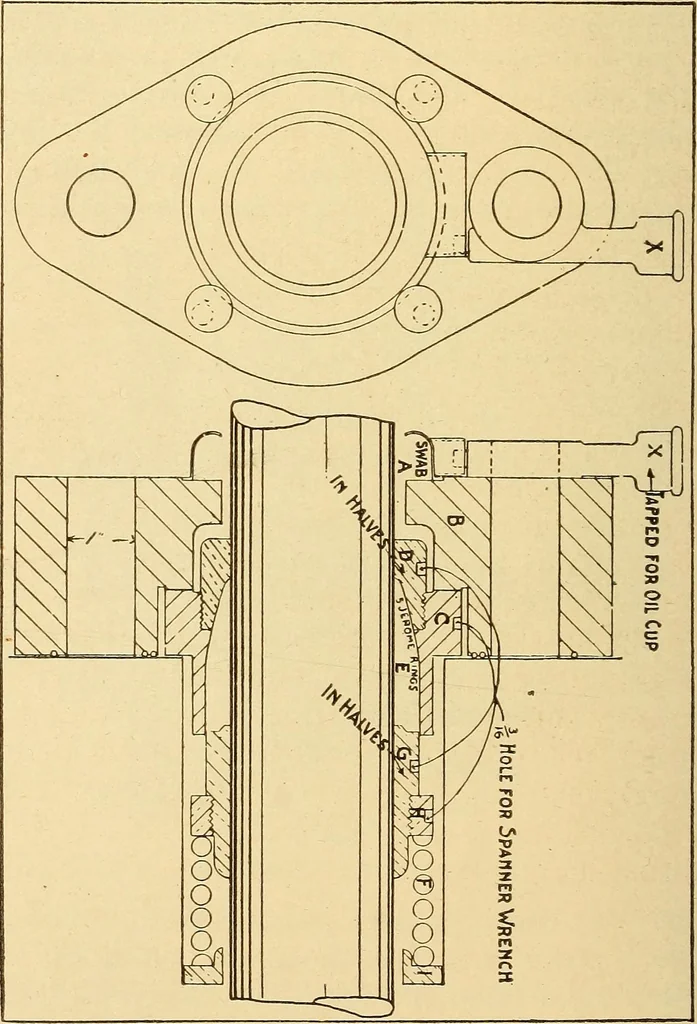

iston Rod Tacking. holder; N -swab holder; M- the swab. The swabholder N is one of the best devices for oiling the pistonrod and valve stem of an engine vet invented, and isnow applied to all of the Jerome packing. Fig. ,? shows in detail the Jerome standard pistonpacking for rods with enlarged… … Fig. 2.Jerome Piston Rod Packing for Pistons with Enlarged Ends. of gun metal, and fitted with dowel pins to hold itrigidly in place when applied. The two halves of D LOCOMOTIVE APPLIANCES. 229 are held together by C screwing over them. E showsthe space where the packing rings shown in Fig. 1 areto…
