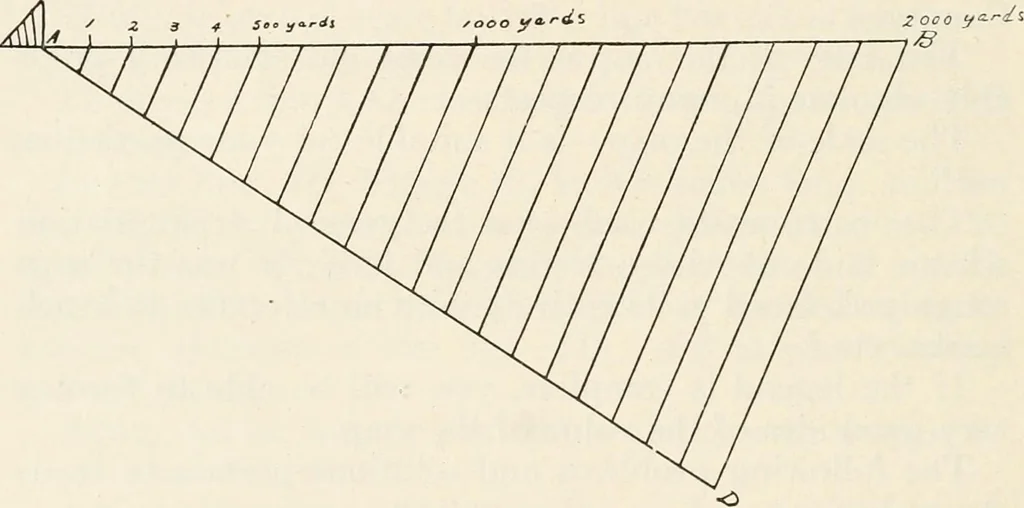

itary Sketching and Map Reading R.F. = 1/25,000. Construct a reading scale to readyards. Show 2,000 yards.Solution:R.F. = 1/25,000 means that one inch on the map repre-sents 25,000 inches on the ground, hence 1 inch (map) = 25,000 inches (ground) = 694.4 yds.(ground). Since 1 inch on the map… … Fig. 17. 3. A map at its bottom has a remark reading R.F. =1/10560 and a graphical scale. You have not the originalbut a photographic copy that is only half the dimensionsof the original. Both map and scale were reduced in thephotograph, and the photograph shows the R.F. as it readon the original.…
