Instructions for operators of J. B. Aiken's family knitting machine. Explaining the manner in which the goods are finished up, the machine kept in order, &c., &c. .. (1861)
Aiken, Jonas B · New York, Baptist & Taylor, steam job printers · leaf 8

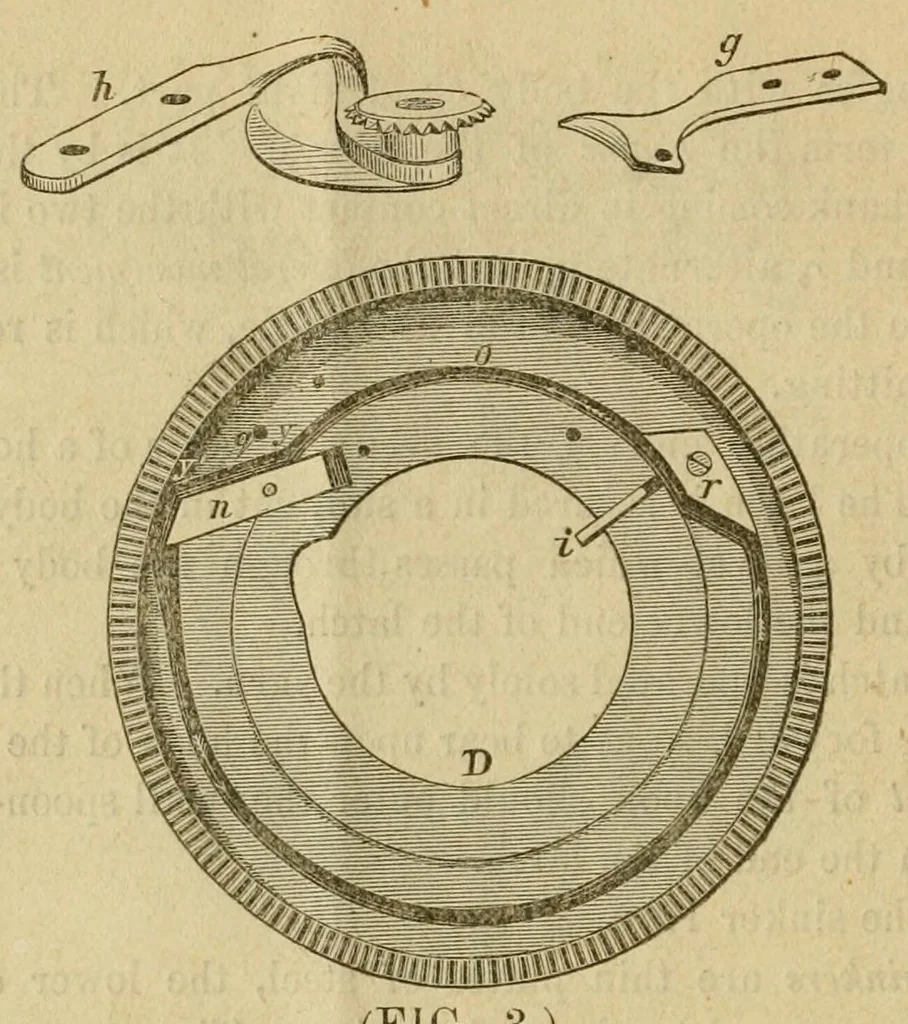

(FIG. 3.) D is the cam-plate, in Avhich are shown the two cams n and r, also the groove o, through which the shanks of the needles pass when the machine is in operation. The direction in which the shanks pass, when the cam-plate revolves, is repre- sented by three^arrows. As the shanks of the…
Knitting machines
