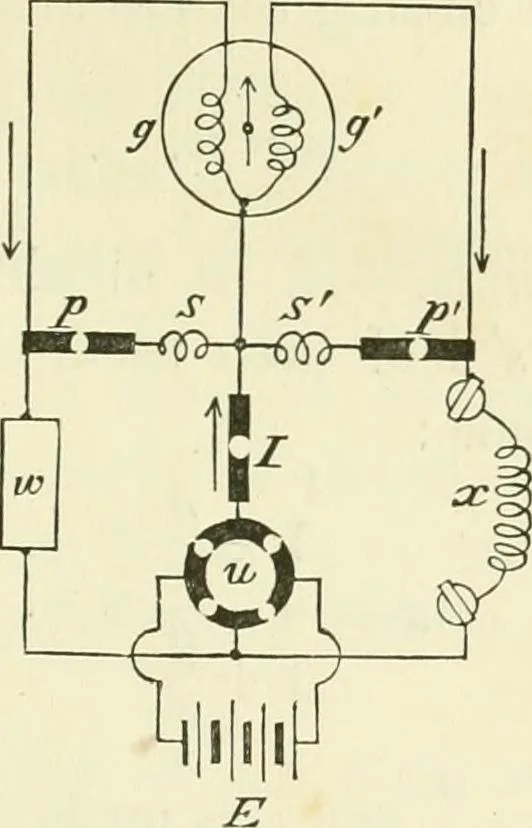

DIFFERENTIAL GALVANOMETER. 29 SECTION IL THE DIFFERENTIAL GALVANOMETER. I. Explanation of the Diagram.—Fig. 4 gives adiagram of the differential arrangement as generallyused. 6^ is a galvanometer having two coils g g wound soas to produce, with equal currents, equal but oppositeeffects on the… … inserting plugs at p and p ; they merely serve to carryoff current from the coils, and have in themselves noaction on the needle. w is a comparison coil similar to that used in Wheat- stones Bridge. 30 ELECTRICAL TESTING. X is tlie unknown resistance to be measured.E is the electromotive force of…
