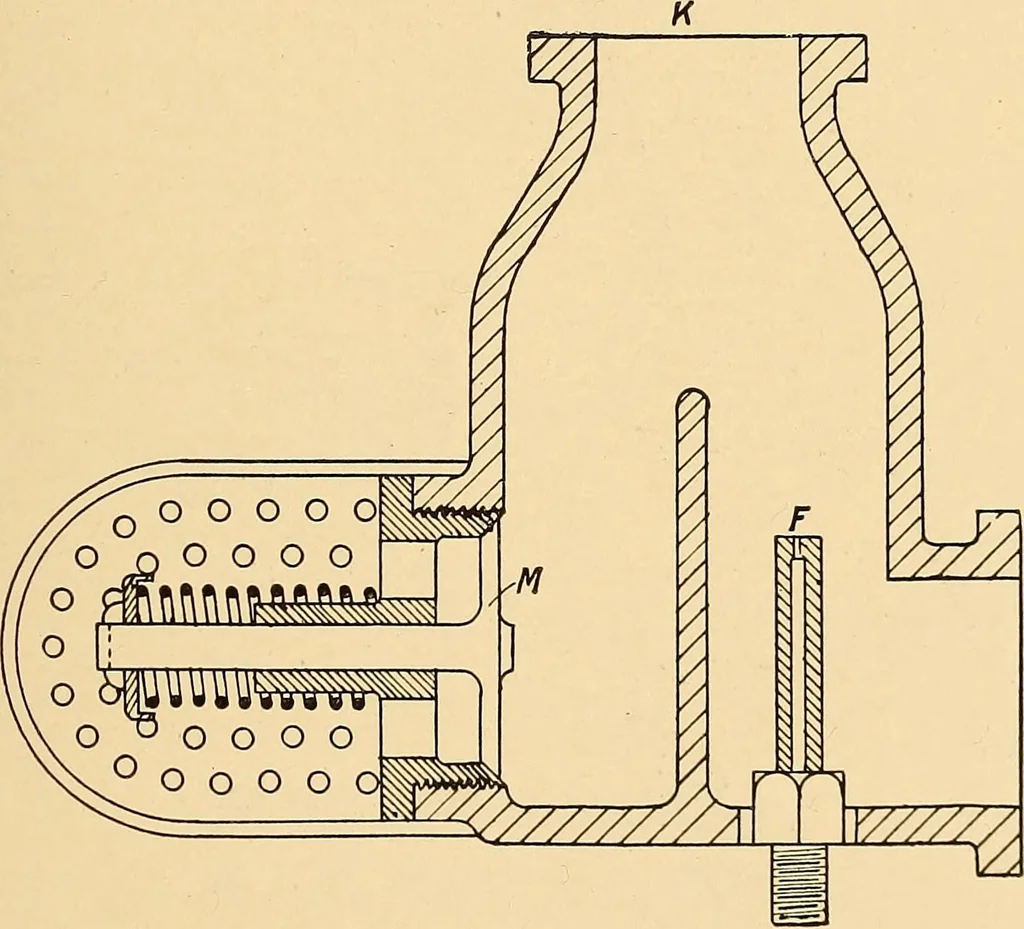

ston speed, the suction on the air increases, the leatherdiaphragm 0 is sucked down against the weak spring Pand opens a valve at M so that air can flow in and minglewith the air which has entered at G and has passed thejet F. L is the throttle valve controlling the quantity ofthe mixture which is… … Fig. 86.—Automatic Carburettor working in a generally similar way tothe Krebs. The opening of the valve M depends on the suction. in over the jet F. There are many other ways, easilydevised, of applying the same principle. Owing to the heat absorbed by the evaporation of thepetrol it is usual to…
