Mechanics of the household; a course of study devoted to domestic machinery and household mechanical appliances (1918)
Keene, E. S. (Edward Spencer), b. 1864 · New York, McGraw-Hill book company, inc.; · leaf 299

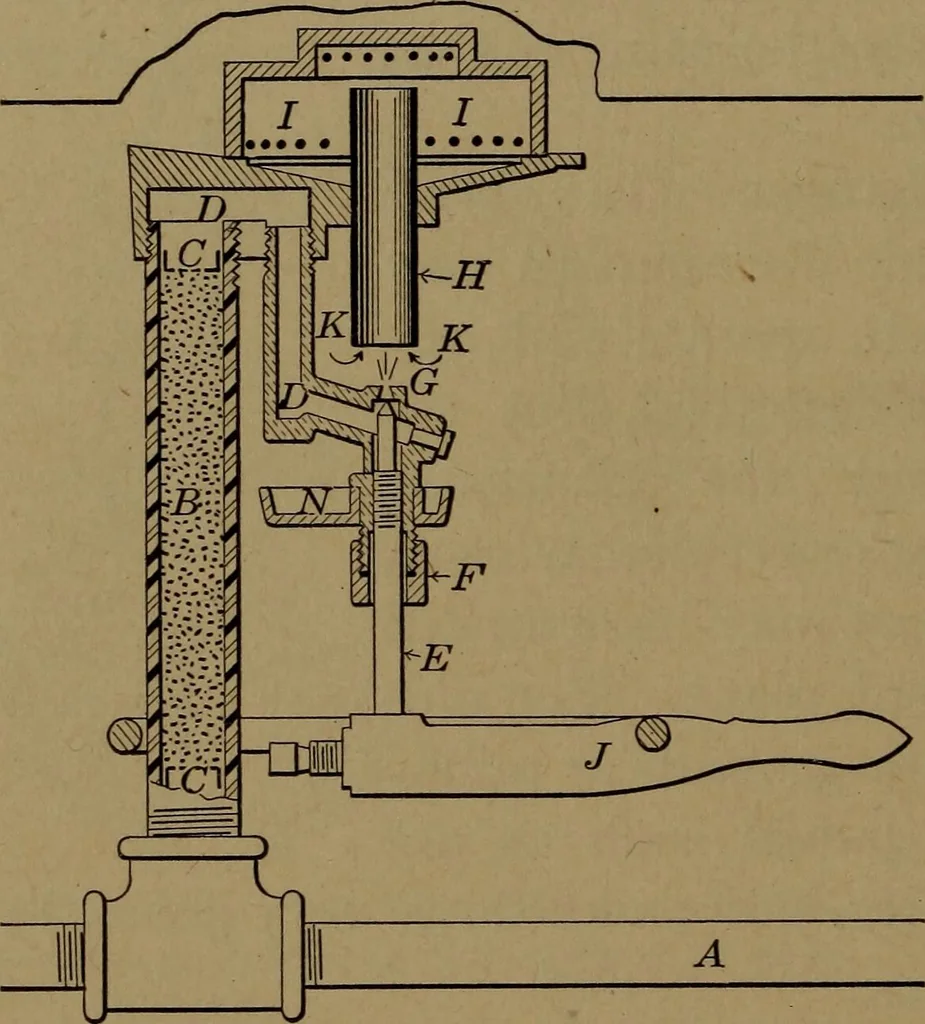

In Fig. 202 is shown a sectional view of the burner as it appearsin the stove. The supply tank, or hollow wire from the pressuretank, sends the gasoline into the tube A at the bottom of thestove, to which several burners may be attached. The tube B,through which the gasoline percolates on its way… … GASEOUS AND LIQUID FUELS 289 pieces C-C are perforated metal plugs that prevent the escapeof the particles of which B is composed. The generator is a brass casting D-D which is firmly screwedto the top of the tube B. A needle-valve E governs the dischargeof the gasoline vapor at G, where the vapor…
Heating · Lighting · Plumbing
