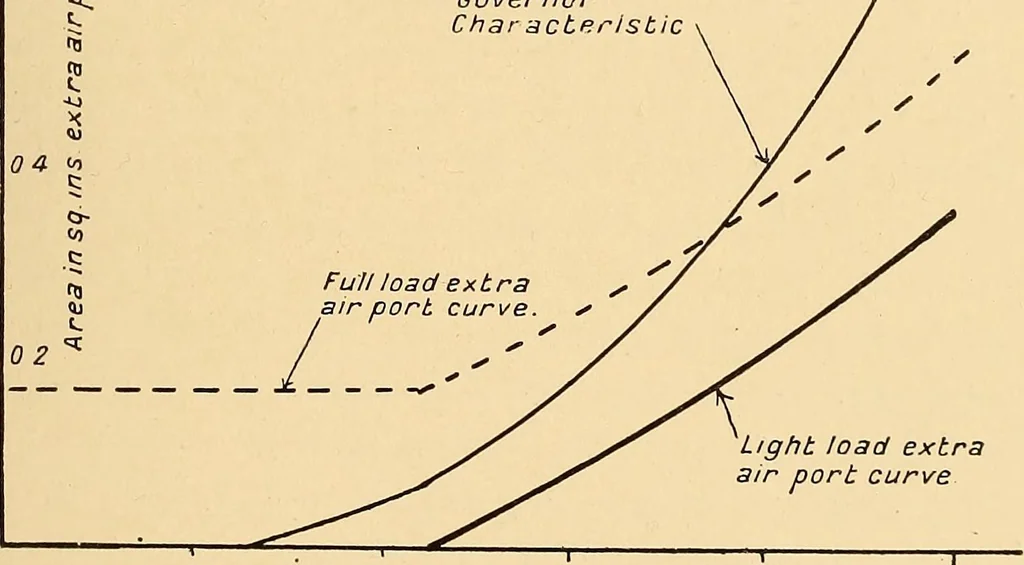

travelof the collar along the shaft is much greater than is usual incentrifugal governors. The connecting link from thegovernor sleeve to the throttle valve is of a length variableby the control lever. In other words, the relative positionof the throttle valve to the governor sleeve can be variedby… … «o o t. * Q 04 J i o to CO V C o fa 0 200 QQO 600 800 1000 R.P.n. Fig. 88.—Characteristic Curves for Murray Governor. at any desired speed within the given range. The throttlevalve is of the piston type, so that it can overshoot its cut-offposition in either direction by an amount equal to the…
