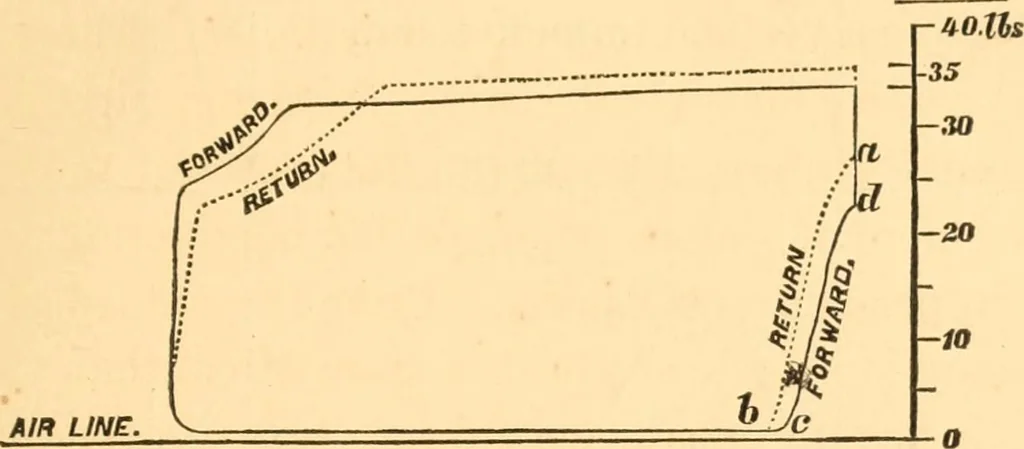

card of the forward stroke, the dotted that of theback. In making comparisons of this kind it should al- * For a complete analysis of this instrument, its practical operation, etc., thereader is referred to Mr. Charles T. Porters Treatise on the Richards SteamIndicator, enlarged by F. W. Bacon, M.… … true relation is expressed between pressure and resistance.The difference in the steam pressure for the two strokesamounted to about 2 lbs. The cut-off took place at— 17yV inches in the forward stroke15| return stroke. Difference^ lT5g inches. The compression commenced at 18| forward. • 17J return.…
